Technical Specs
Function | 02 Privacy |
Function Family | Privacy |
ANSI Function |
F76A - Privacy |
Lever/Knob Design | Sierra Lever |
Lever/Knob Design Family | Return Lever |
Rose/Escutcheon Design |
3-3/8" Rose Diameter |
Rose/Escutcheon Dimensions | 3-3/8" |
Cylinder Type |
Non-Keyed |
Handing | Non-handed |
Door Thickness | 1-3/8" to 1-3/4" |
Std. Latch Number | R73 |
Std. Latch Type | Springlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 7/8" |
Lock Face Size | 1-1/8" x 2-1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | R62 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
Product Specs
Manufacturer | Arrow |
SKU | RL02-SR-03 |
Grade | Grade 2 |
Installation | Commercial |
Origin | Taiwan |
Unit of Measure | Each |
Base Material | Brass |
UL Listing Type | ANSI A156.2 Series 4000, Grade 2, UL Listed |
ANSI Number | F76A |
Limited Warranty | 5 Year Warranty |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Finish | 605/US3 |
Finish Description | Bright Brass |
Finish Family | Polished Brass |

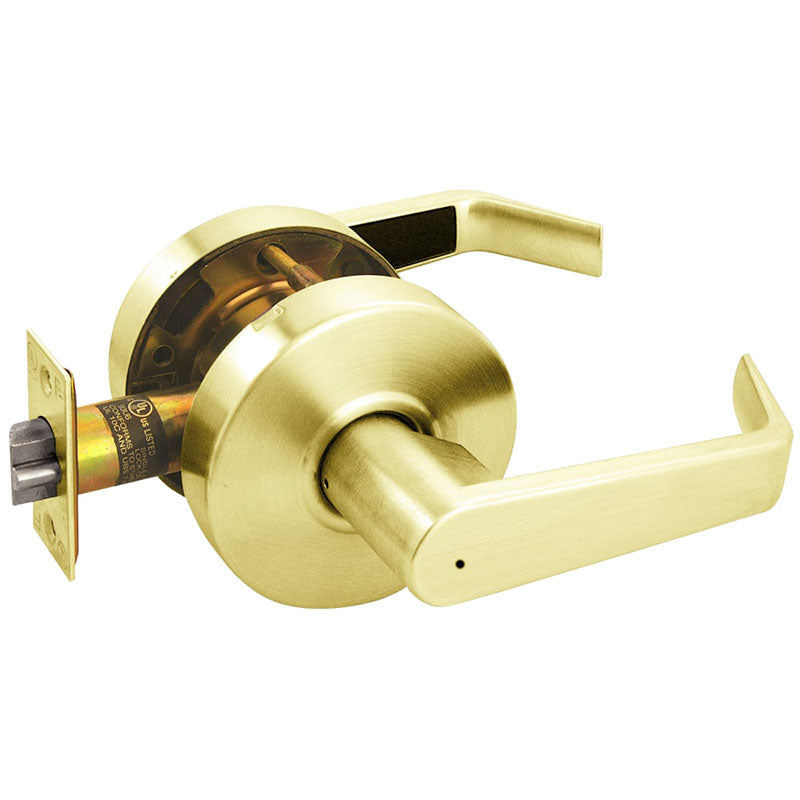

The Arrow RL02-SR-3 is a Privacy Lever Lock, with a Sierra Lever, is Non-Keyed, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 1, and comes in Bright Brass Finish.
Privacy Bath/Bedroom - F76A
- Rigid lever
- Latch operated by lever either side except when outside lever is locked by pushing inside button
- Outside lever unlocked by turning inside lever, using emergency key, or closing door
- Inside lever always operates latch
The RL Series offers removable through bolts and a wide variety of designs. The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes, and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
