Description

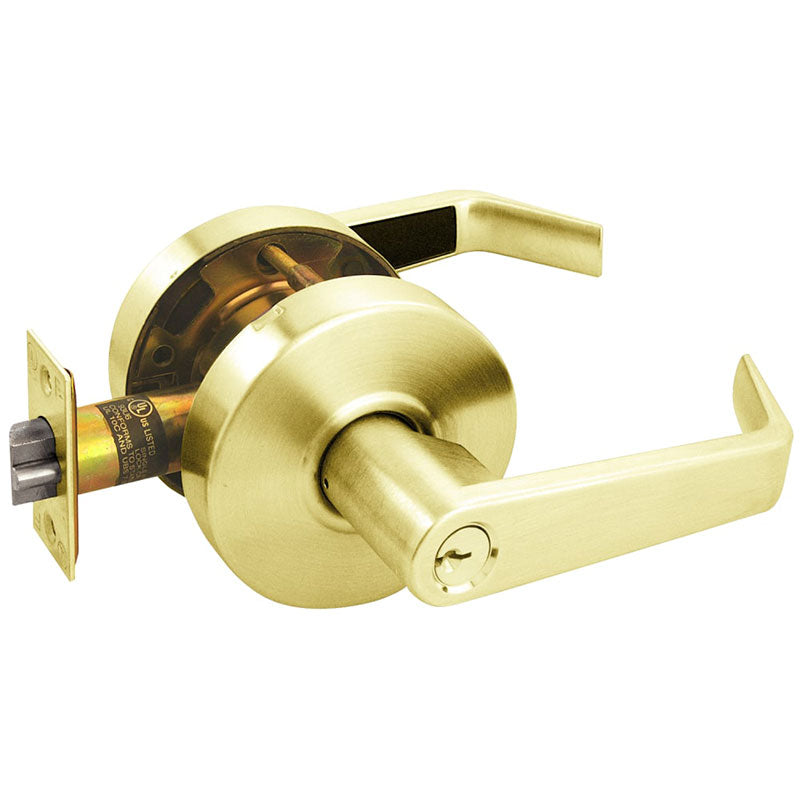

The Arrow RL12-SR-3-CS is a Storeroom Lever Lock, with a Sierra Lever, has a Conventional Cylinder, with a Schlage C Keyway, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in Bright Brass finish.
Storeroom or Closet - F86
- Rigid lever
- Outside lever always rigid
- Latchbolt operated by key in outside lever, or by turning inside lever
The RL Series offers removable through bolts and a wide variety of designs. The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes, and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
Product Specs
| Manufacturer | Arrow |
| SKU | RL12-SR-03-CS |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| Base Material | Brass |
| UL Listing Type | ANSI A156.2 Series 4000, Grade 2, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 605/US3 |
| Finish Description | Bright Brass |
| Finish Family | Polished Brass |
Technical Specs
| Function | 12 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | Sierra Lever |
| Lever/Knob Design Family | Return Lever |
| Rose/Escutcheon Design |
3-3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage C Keyway |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | R71 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | R62 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
