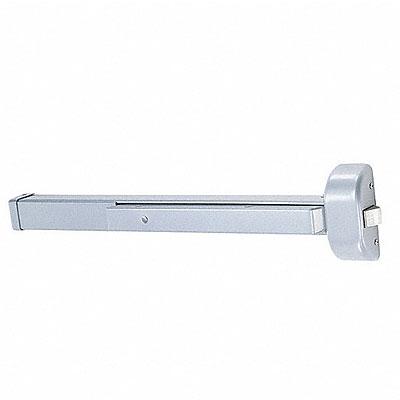

Arrow S1250G 48 AL, Rim Exit Only Panic Device, Surface Mounted, Exit Only, 48" Bar, Wide Stile Pushpad, With Dogging, Aluminum Painted, Non-Handed.

Certification & Compliance:

• ANSI/BHMA A156.3, Grade 1
• ANSI A117.1 Accessibility Code
• Underwriters Laboratories (UL and CUL) listed
for accident hazard (panic) standard.
• Fire Exit hardware for hollow metal doors,
UL and CUL listed for 3 hours, A label and lesser
doors, Prefix “F” before part number.
• All exit devices comply with the life safety code
NFPA 101.
• All fire-rated devices comply with the fire door, The S1150, S1250 Are Not Fire Rated.
and window code NFPA80.

General Specifications:

S1150 S1250
Chassis & Cover Non-ferrous alloy Non-ferrous alloy
End caps Metal Metal
Doors 1-3/4" (44.45mm) thick wood or hollow metal 1-3/4" (44.45mm) thick wood or hollow metal
3-3/4" minimum stile for single doors 4-1/2" (114.3mm) minimum stile
3-1/2" (88.90mm) minimum stile for double doors 4-5/8" for fire-labeled devices
Handing Reversible Reversible
Dogging Allen-type key standard, Allen-type key standard,
cylinder available. cylinder available.
Top/Bottom Bolts/ Brass 1/2" (12.7mm) throw top, 3/4" (19.05mm) throw, stainless steel
Latchbolt 3/4" (19.05mm) bottom
Through bolts Order separately Order separately
Rail Assembly Steel Steel
Rail Size Furnished standard for doors up to 36", a Furnished standard for doors up to 36",
can be cut down to accommodate 32" doors. can be cut down to accommodate 32" doors.
Alternate rail sizes available for narrow or Alternate rail sizes available for narrow or
wide doors wide doors
Rods 90"–extension kits available N/A
Trim See trim page 105 See trim page 105
Finishes AL, BRZ, LBZ (sprayed finishes) AL, BRZ, LBZ (sprayed finishes)
