Description

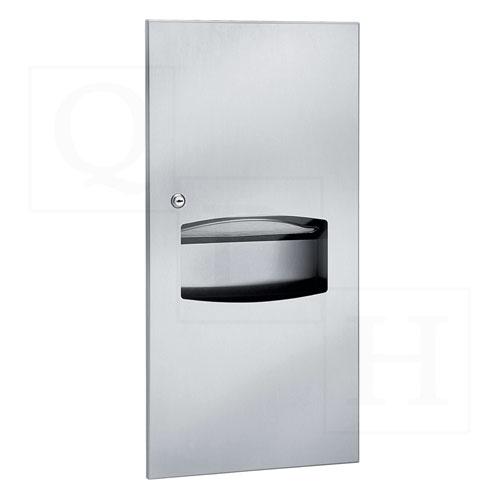

Bradley 2297 Low Capacity Towel Dispenser 1.7 Gallon Recessed Waste Receptacle
The Bradley 2297 Is a Recessed combination towel dispenser and waste receptacle shall be fabricated of heavy gauge stainless steel with exposed surfaces in satin finish. Cabinet door of 18 gauge stainless steel with full length concealed piano hinge and secured by tumbler lock. Towel dispenser capacity 475 multi-fold or 350 C-fold towels. Removable 1.7 gal. leakproof molded plastic insert for waste receptacle
Features
- Satin finish Stainless Steel
- Holds 475 multi-fold or 350 C-fold paper towels
- 1.7 gallon waste capacity
- Recessed
- BradEX ®
Specifications
| Materials: |
Cabinet:22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges Door: 18 gauge stainless steel, 1/2" return for maximum rigidity. Concealed full length stainless steel piano hinge and tumbler lock keyed like other Bradley units Towel Dispenser: 22 gauge stainless steel. Rolled edge on dispenser opening Waste Receptacle Insert: leakproof molded plastic |
| Operation: | Towel dispenser holds multi-fold or C-fold towels without use of special adaptor. Waste receptacle insert removable for easy servicing |
| Installation: |
Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 12-11/16" w x 26-5/8" h x 4"d (Semi-recessed unit only 1-3/4" deep). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required. Surface-mounted units must have holes drilled by installer. |
| Size: | 14-1/4" (362mm) h x 28-1/4" (718mm) h x 4-1/8" (105mm) d |
| Capacity: |
Towel Dispenser 475 multi-fold or 350 C-fold paper towels Waste Receptacle 1.7 gal. (0.22 cu. ft.) |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
