Description

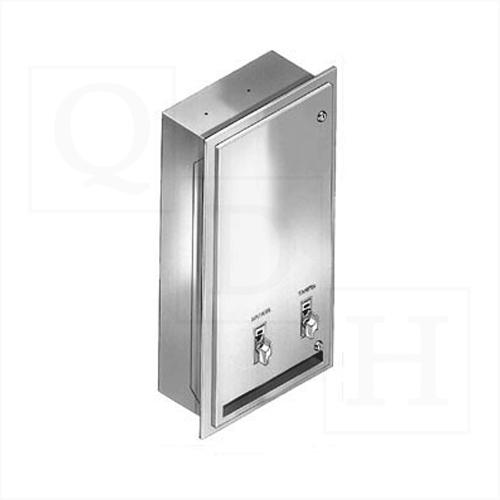

Stainless Steel Napkin/Tampon Vendor. Satin finish
Features
- Fixed Tilt Mirror
- 25 ¢ - 45 BradEX ®
Specifications
| Materials: | Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with 1/4" return. Slip-type flange permits partial or full recess installation, or can be discarded for surface mounting Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Door: 18 gauge stainless steel with exposed surfaces in architectural satin finish, with full-length piano hinge and two tumbler locks keyed like other Bradley units Coin Box: Inside cabinet is 22 gauge stainless steel, secured by a separate lock keyed differently than door locks. Coin mechanisms are available with free or $.25. Two mechanisms are included. Coin mechanisms may be replaced in the field without removing cabinet from wall |
| Installation: | Verify all rough-in dimensions prior to installation. Requires rough wall opening 12 1/2" w x 26 3 /8" h x 6" d (fully recessed). Secure flange to rough wall opening using screws (included). Insert cabinet through flange into wall opening. Secure cabinet to framing with screws (not included) at holes provided. Shim at screw points as required |
| Operation: | Insertion of coin permits clockwise rotation of handle to dispense product. Will not accept coin when vendor is empty. Access door allows servicing of unit |
| Capacity: | 30 napkins (3" x 4 1/4" x 1" or smaller) and 28 tampons (5 1/8" long x 3/4" dia. or smaller). Dispenses all popular brands |
| Size: | 13 15/18" (354mm) w x 27 15/18" (711mm) h x 6 1/2" (165mm) d |
| Weight: | 26.00 lbs |
| Manufacturer: | Bradley |
