Description

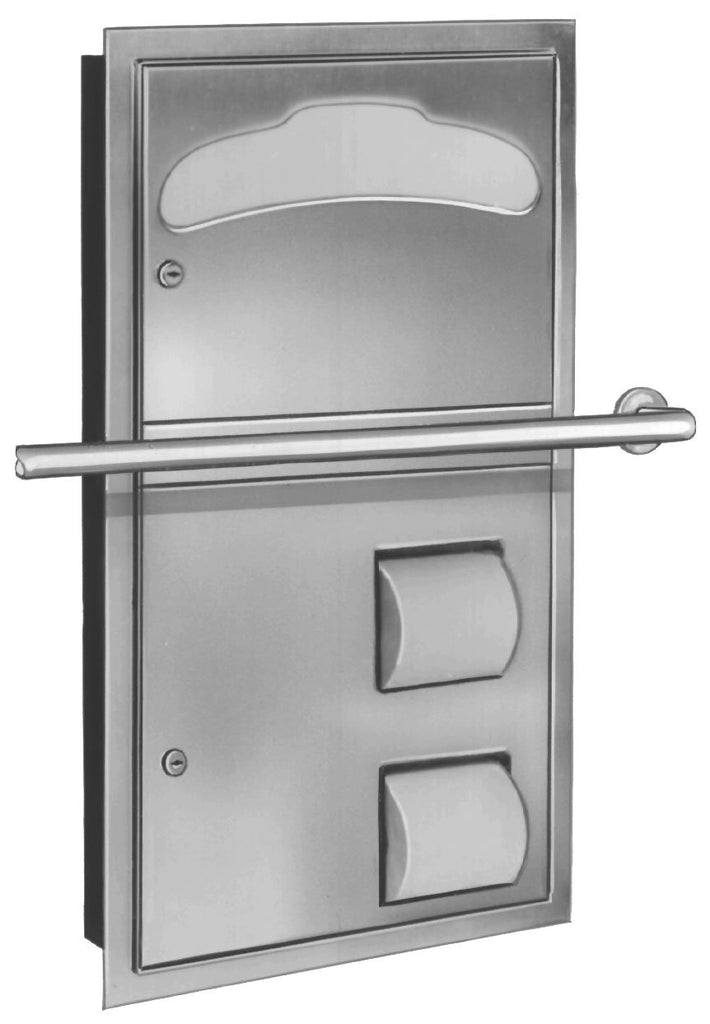

Bradley 5922, 1-Stall Seat Cover/Paper Dispenser, Recessed
The 5922-1 Is a Recessed combination unit shall include toilet seat cover dispenser and toilet tissue dispenser fabricated of stainless steel with seamless exposed surfaces in satin finish. Door and back panel shall be 18 gauge. Door shall have piano hinge and tumbler lock
Features
- Recess Mounted
- Seat Cover/Tissue Dispenser
- Satin finish Stainless Steel
- BradEX ®
Specifications Bradley 5922 1-Stall Seat Cover/Tissue Dispenser
| Materials: |
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Flange:22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return Door: 18 gauge stainless steel with full-length piano hinge and tumbler lock keyed like other Bradley units Spindles: polyethylene, non-removable by user |
| Operation: | Hinged access door permits servicing of components from one side |
| Installation: | Verify all rough-in dimensions prior to installation. Requires rough wall opening 15-3/8"W x 28-7/8" h x 4 1/4" d. Secure to framing with mounting screws (included) at holes provided. Recessed unit allows clearance for grab bar (not included) across front of unit. Semi-recessed and surface mounted units utilize one piece door; does not allow clearance for grab bar |
| Size: | 17-1/8" (435mm) w x 30-5/8" (778mm) h x 4-1/2" (114mm) d |
| Capacity: | Toilet Seat Cover Dispensers 1,000 standard single-fold or half-fold toilet seat covers; Toilet Tissue Dispensers two standard core toilet tissue rolls through 5-1/4" in diameter. |
| Weight: | 20.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
