Description

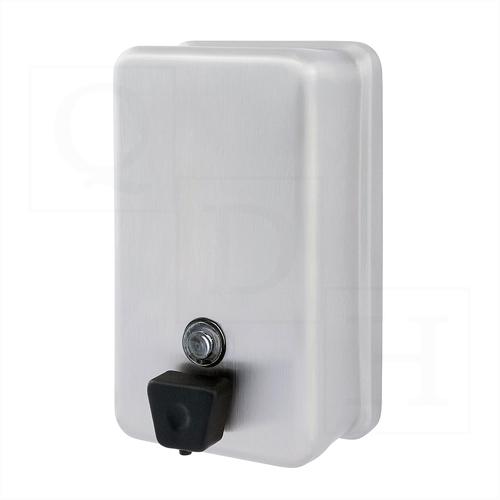

Bradley 6563 Soap Dispenser with ABS Plastic Valve Vertical Tank Stainless Steel, The Bradley 6563 Is a Surface-mounted liquid soap dispenser fabricated of 20 gauge satin finish stainless steel. Dispenser shall have completely concealed mounting, vandal resistant filler hole cover and sight gauge. Push-in corrosion-resistant liquid soap valve. Capacity: 40 oz. liquid soap. Requires less than 5 lbs. of force to dispense soap
Features
- ADA Compliant
- Tank Type - Vertical
- Surface Mounted
- Stainless Steel - with Black ABS Plastic valve
- Liquid Soap - 40oz capacity
Specifications Bradley 6563 Soap Dispenser with ABS Plastic Valve Vertical Tank Stainless Steel,
| Materials: | Body:20 gauge stainless steel with exposed surfaces in architectural satin finish Back: 20 gauge stainless steel; welded to the body Wall Plate: Stainless steel Soap Valve: black ABS plastic mechanism |
| Operation: | Push-in valve dispenses measured amount of vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions with less than 5 lbs. of force. Sight gauge indicates refill time. Locked filler top opens with special key provided |
| Installation: | Verify all rough-in dimensions prior to installation. Secure separate mounting bracket to wall. Slide dispenser into place and secure locking screw through filler hole |
| Size: | 4 13/16" (122mm) w x 8 3/16"(208mm) h x 3 3/4"(95mm) d |
| Capacity: | 40 oz. liquid soap |
| Weight: | 2.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
