Bradley 832 Grab Bar 1-1/4" O.D. Concealed Mounting Stainless

  • SKU: 8320001480

Bradley 832 Grab Bar 1-1/4" O.D. Concealed Mounting Stainless

  • SKU: 8320001480
Sale price$108.00/ea
In Stock
In Stock
Bradley Length: 001480 48"
CUSTOMIZE YOUR SIGN
Main Sign Colour *
Writing / Font Colour *
Writing / Font Style *
Please get in touch for alternate fonts to these before purchase.
Fixing Type *
Invisible fixings require a flat / level surface.
Add Your Personalisation *
x3 Lines of Text (Max 15 characters including spaces per line)
Layout preference / Design notes (Optional)
Please leave any notes on preferred layouts for your sign design.

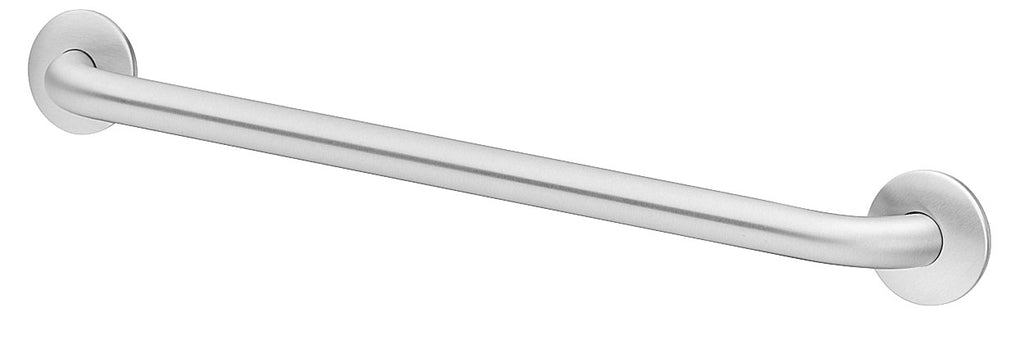

1-1/4" O.D. heavy duty stainless steel grab bar with concealed mounting


Features

  • 1-1/4" O.D
  • Concealed Mounting
  • Heavy Duty Stainless Steel

Specifications

Materials: Flanges: 3 1/8" dia. 13 gauge stainless steel
Escutcheons: 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws
Tubing: 1 1/4" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are welded for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All exposed welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1 1/2" standard safety clearance between wall and bar
Installation: Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. Snap escutcheons into place
Size: 8320-001180: 1-1/4"OD X 18
8320-001240: 1-1/4" OD X 24
8320-001360: 1-1/4" OD X 36
8320-001420: 1-1/4" OD X 42
8320-001480: 1-1/4" OD X 48
Weight: 8320-001180: 1.46 lbs
8320-001240: 1.79 lbs
8320-001360: 2.43 lbs
8320-001420: 2.81 lbs
8320-001480: 3.01 lbs
Manufacturer: Bradley

Certifications

ANSI: Standard A117.1 Complaint
ADA/ABA: Complies with Accessibility Guidelines for Buildings and Facilities (ADAAG)
UFAS: Complies with Uniform Federal Accessibility Standard
