Description

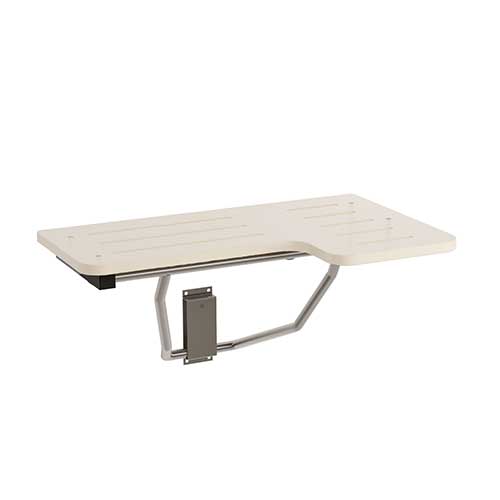

Bradley 9594 Linen Bradmar Solid Plastic Reversible Folding Shower Seat, Reversible in field to be right or left hand, Hinged seat folds up and out of the way when not in use, When properly installed, seat can support up to 250 lbs. static load.
Features
- Barrier-Free Design
- Stainless Steel frame
- 1" thick high-density polyethylene Bradmar solid plastic seat
- Seat can be reversed to either right or left hand configuration
- Linen cobblestone textured finish
Specifications
| Materials: | Frame: 18 gauge 1" diameter tubing with 1 ½" HDPE support bars. Mounting Flanges: 7 gauge satin finish stainless steel with three mounting holes provided in each flange for installation. Lower Support Bracket: 16 gauge satin finish stainless steel. Seat: 1" thick high-density polyethylene. Linen cobblestone textured finish. All exposed edges are machined smooth. Reversible in field to be right or left hand. |
| Installation: | Verify all rough-in dimensions prior to installation. Provide concealed backing or anchors as specified by architect before finished wall is applied Secure seat support bracket to wall with mounting screws (not included) at holes provided. Locate mounting holes 16 1/6" above finished floor. Secure leg support bracket to wall at locations shown |
| Operation: | Hinged seat folds up and out of the way when not in use. When properly installed, seat can support up to 250 lbs. - static load |
| Size: | 34 1/2" Wide x 22" Deep x 1/2" Thick |
| Weight: | 22.00 lbs |
| Manufacturer: | Bradley |
