Description

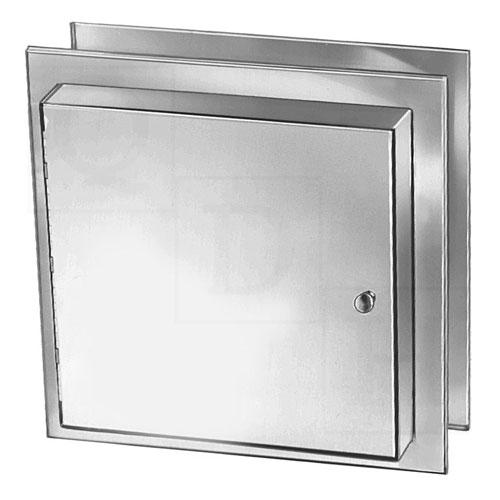

Bradley 9813 Specimen Pass-Thru Cabinet, The 9813 Is a Specimen pass-thru cabinet fabricated of stainless steel with 20 gauge doors and all exposed surfaces in satin finish. Removable stainless steel spill tray.
Features
- Satin finish Stainless Steel
- Adjusts from 3" to 5-1/2" wall thickness only
- Interlocking mechanism allows only 1 door open at a time
- BradEX ®
Specifications
| Materials: | Cabinet:18 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Flanges:22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with 1/4" return Doors: 20 gauge stainless steel with exposed surfaces in architectural satin finish. Equipped with full-length stainless steel piano spring hinge and chrome plated brass pull knob. Doors are self-closing Inter-Lock Mechanism: prevents both doors from being open at same time Spill Tray: heavy-duty, 22 gauge stainless steel with soldered seams to prevent leakage |
| Installation: | Verify all rough-in dimensions prior to installation. Requires rough wall opening of 11 5 /8" w x 10 7 /8" h. Adjusts to wall thickness of 3" to 5 1/2". Remove one flanges and slip unit into wall. Replace flanges and secure to cabinet with concealed mounting screws (included) at holes provided. Tighten screws holding opposite flanges |
| Operation: | Special interlock mechanism permits only one door to open at a time. Spill tray removes for cleaning |
| Size: | 13 3/8" w x 12 5/8" h x 6"d |
| Weight: | 12.00 lbs |
| Manufacturer: | Bradley |
