All Command Access Technologies Products
Technical Specs
| Product Type | Power Transfers |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | CDL-BLK-EXT2 |
| Unit of Measure | Each |
| Installation | Commercial |

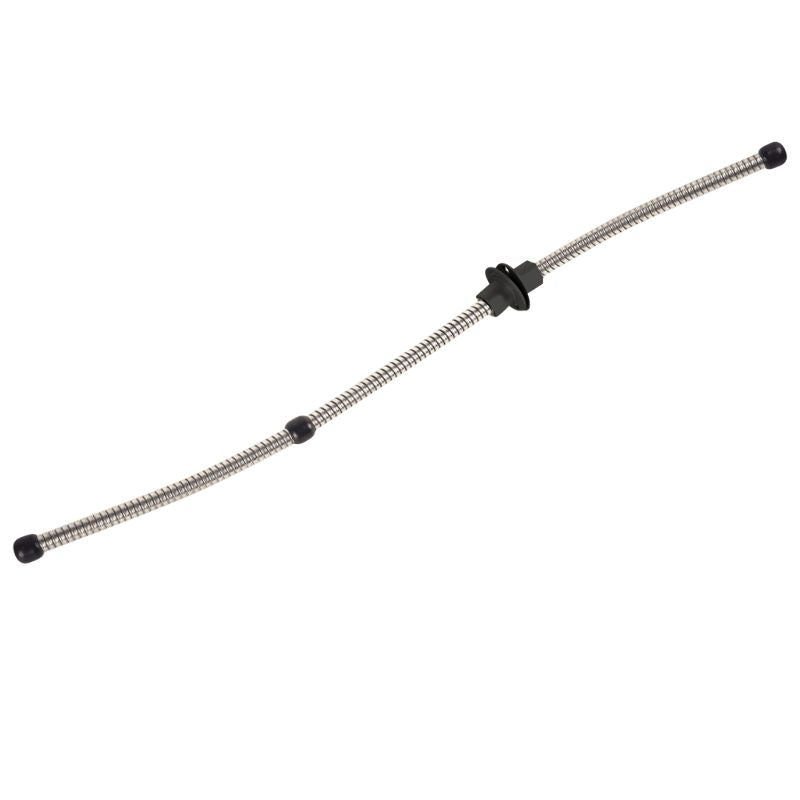

Command Access Technologies CDL-BLK-EXT2 Concealed Door Loop, 18" Length, 1 Side Fixed, Both Sides Extended, Black Anodized
The Command Access Technologies CDL-BLK-EXT2 Concealed Door Loop is designed for use with concealed doors, measuring 18 inches in length. One side is fixed while both sides are extended, offering reliable and secure solutions in black anodized finish.
- Durable finish
- Easy Installation
- Variable mounting locations
- Special 1/4” flexible armoured conduit
- Supports up to 180° swing
This patented Concealed Door Loop (CDL) offers an economical solution for transferring low voltage power from the door frame to the locking device. Unlike typical door loops that are surface-mounted and always visible, the CDL retracts into the door and/or frame, remaining completely hidden when the door is closed. It is suitable for Continuous and Butt hinge applications, including full mortise, half mortise, or half surface types with a standard throw. The CDL is often used in situations where Electric Transfer Hinges (ETH) are too costly and surface door loops are not preferred. Its aesthetic appeal enhances both retrofit projects and new installations.
