Technical Specs
| Hinge Type |
Hinge, Full Mortise |
| Knuckles |
5 |
| Bearing Type |
Plain Bearing |
| Pin Type |
Non-Removable |
| Tip Style |
Standard |
| Weight |
Standard Weight |
| Power Transfer |
2-20GA |
| Product Type |
Electrified Hinges |
Product Specs
| Manufacturer |
Command Access Technologies |
| SKU |
ETH2W4540 CH-BB79 |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Base Material |
Steel |

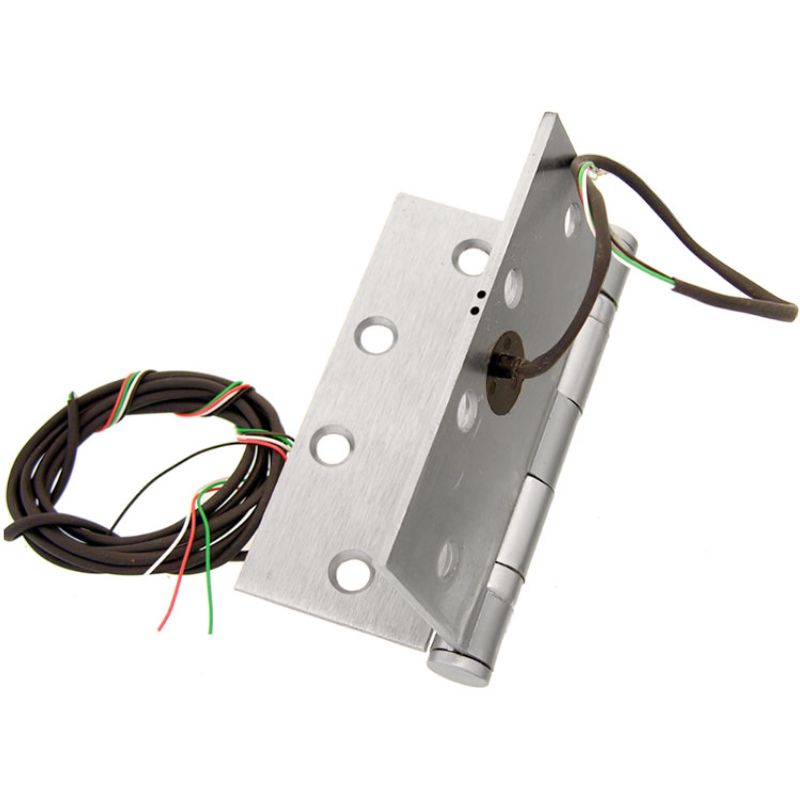

Command Access Technologies ETH2W4540 CH-BB79 Energy Transfer Hinge, 4-1/2 IN x 4 IN, 5 Knuckle Standard Weight, 2-Wire, 20 Ga
The Command Access Technologies ETH2W4540 CH-BB79 Energy Transfer Hinge is 4-1/2 inches by 4 inches in size. It features a 5 knuckle design and is made with a standard weight and 20 gauge wire. This hinge is equipped with 2 wires for optimal energy transfer.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
