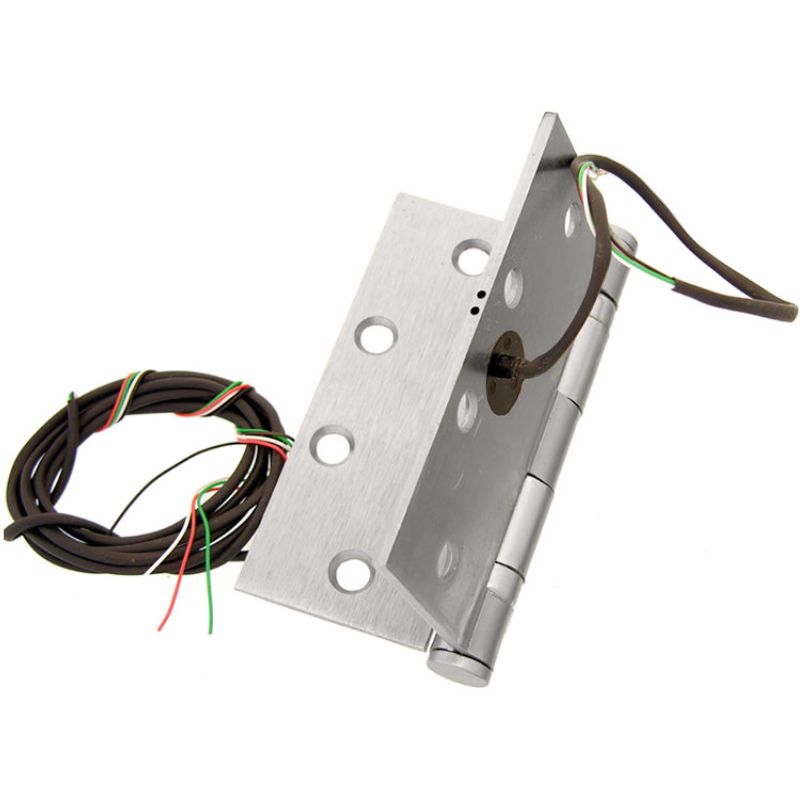

Command Access Technologies ETH4W4540 CH-BB79 RC14 4 Wire Power Transfer Hinge, 1/4 Radius Corner

Technical Specs

Product Specs

Command Access Technologies ETH4W4540 CH-BB79 RC14 4 Wire Power Transfer Hinge, 1/4 Radius Corner 4. 1/2 In x 4 In 12 - 28 Ga Wire, Standard Weight Steel Base

The ETH4W4540 CH-BB79 RC14 4 Wire Power Transfer Hinge from Command Access Technologies features a versatile 1/4 radius corner and a durable satin chrome finish. Constructed with 12 - 28 gauge wire and a steel base, this hinge is designed for standard weight doors and offers a 4 inch by 1/2 inch size.

The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
