Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 2-18GA and 2-26GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH4WH4545 626 CH-BB68 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

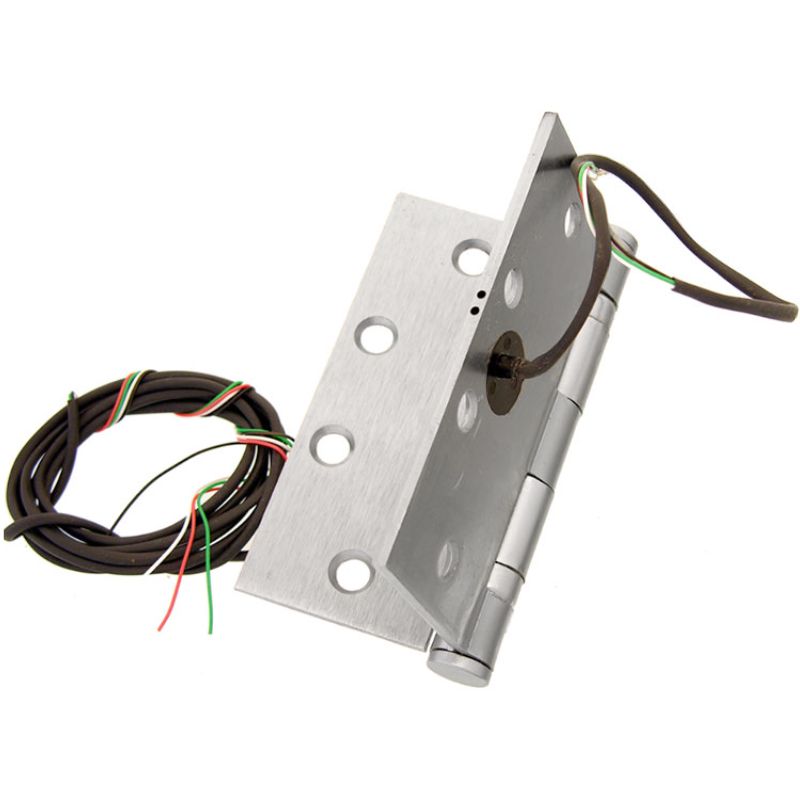

Command Access Technologies ETH4W4545 626 CH-BB68, Energy Transfer Hinge, 4-1/2 In x 4-1/2 In, 5 Knuckle Heavy Weight, 4-Wire, 26 Ga, US26D Satin Chrome Finish
Command Access Technologies offers their ETH4W4545 626 CH-BB68 Energy Transfer Hinge, featuring a 5 knuckle heavy weight design and a satin chrome finish. The 4-1/2 inch by 4-1/2 inch hinge also includes 4 wires and is made from 26 gauge steel, providing reliable and secure energy transfer capabilities.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
