Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 4-28GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH4W4545 CH-BB79 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

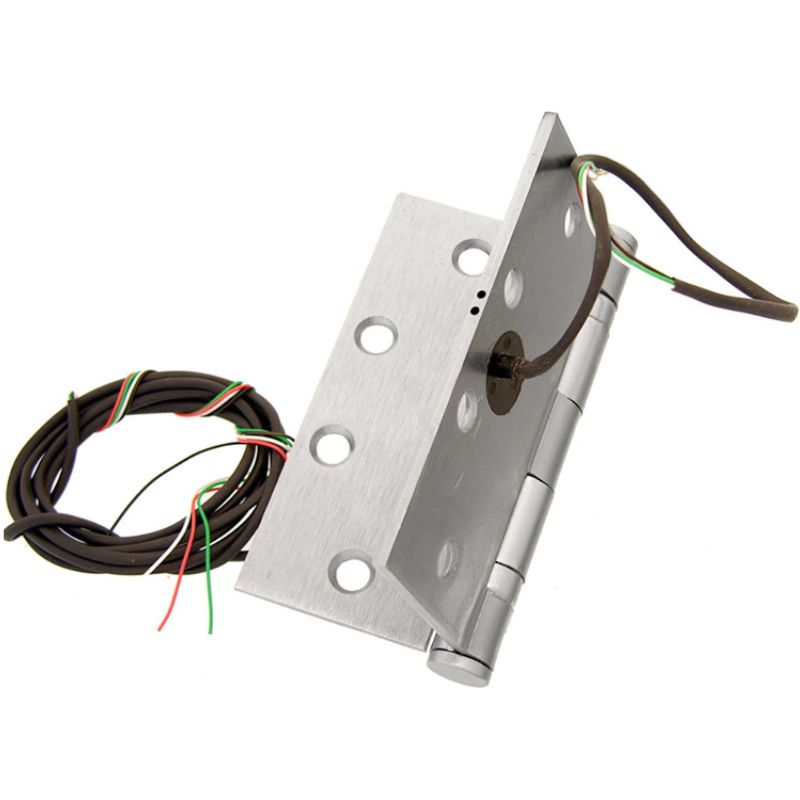

Command Access Technologies ETH4W4545 CH-BB79 Energy Transfer Hinge, 4-1/2 In x 4-1/2 IN , 5 Knuckle Standard Weight, 4-Wire, 26 Ga
The ETH4W4545 CH-BB79 Energy Transfer Hinge by Command Access Technologies is a 5 Knuckle Standard Weight hinge with a 4-wire design. It measures 4-1/2 inches by 4-1/2 inches and is constructed with sturdy 26 gauge material. This hinge is ideal for transferring energy and can easily be incorporated into a variety of applications.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
