Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 6-26GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH6W4545 CH-BB79 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

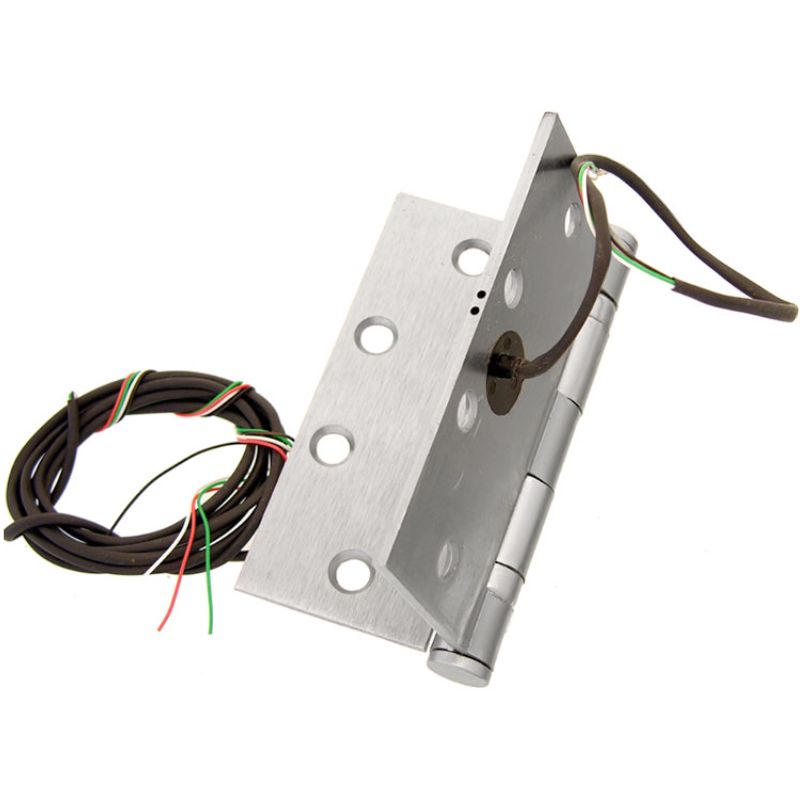

Command Access Technologies ETH6W4545 626 CH-BB79 Energy Transfer Hinge, 4-1/2 IN 4-1/2 IN, 5 Knuckle Standard Weight, 6-Wire, 26 Ga, Satin Chrome Finish
The ETH6W4545 626 CH-BB79 Energy Transfer Hinge from Command Access Technologies is a 5 Knuckle Standard Weight hinge designed for use with a 6-Wire, 26 Ga, Satin Chrome Finish. Its 4-1/2" size makes it compatible with a variety of door applications.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
