Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 2-18GA and 4-28GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH6WH4545 CH-BB79 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

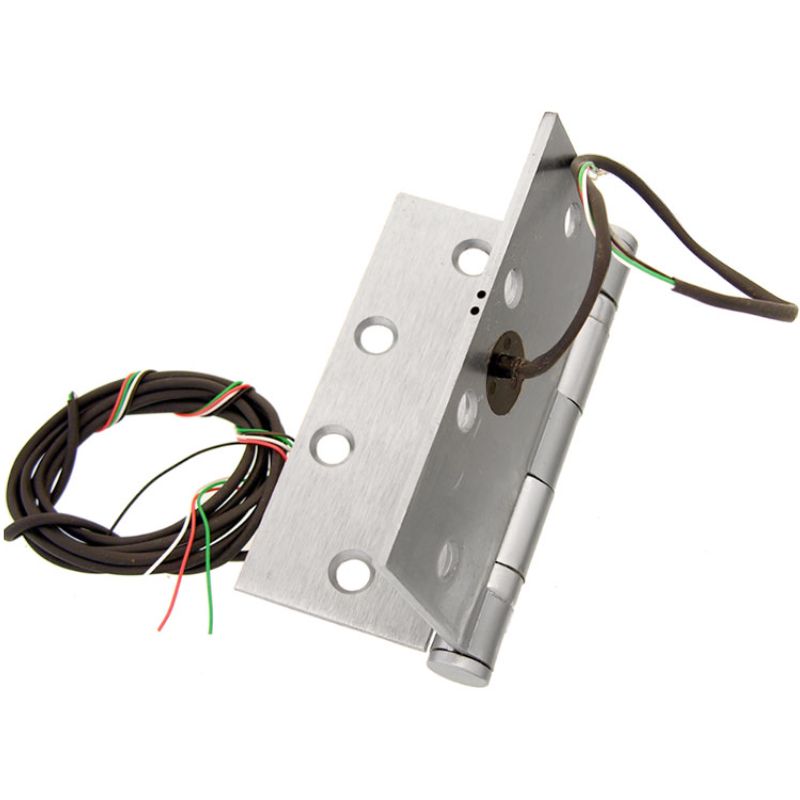

Command Access Technologies ETH6WH4545 626 CH-BB79 Energy Transfer Hinge, 4-1/2 IN x 4-1/2 IN, 5 Knuckle Standard Weight, 6-Wire, Two 18 Gauge, Four Gauge, Satin Chrome Finish
The ETH6WH4545 626 CH-BB79 Energy Transfer Hinge from Command Access Technologies is a high-quality product designed to improve the efficiency and security of doors. Featuring a 5 knuckle standard weight and 6-wire design with two 18 gauge and four gauge wires, this hinge is built to withstand heavy use. The satin chrome finish adds a sleek and modern touch to any door.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
