Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 8-28GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH8W4040 626 BB1279 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

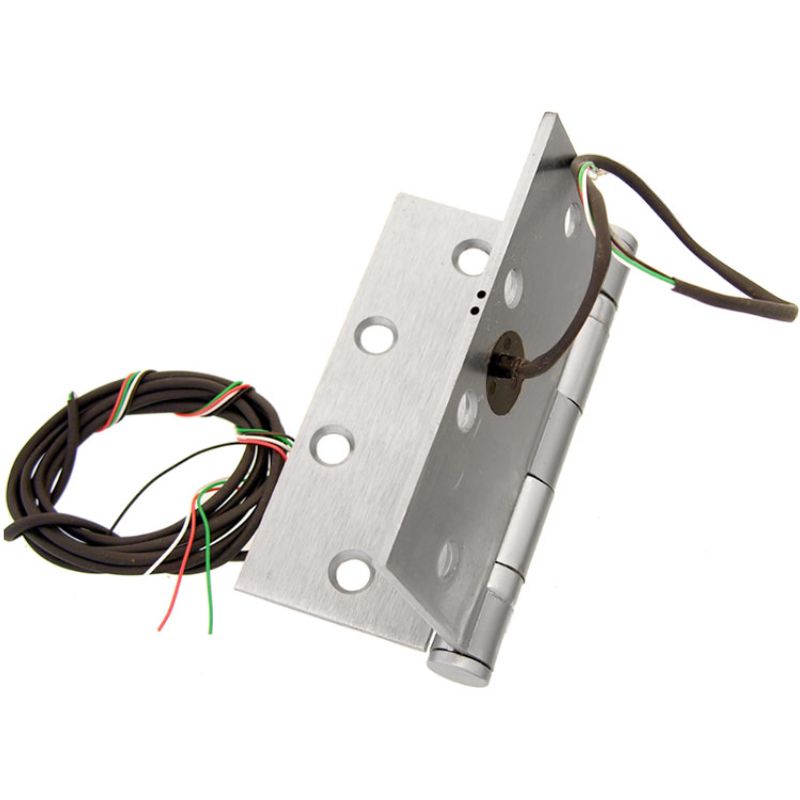

Command Access Technologies ETH8W4040 626 BB1279, Power Transfer Hinge, Square Corner 4 In x 4 In, 8 Wire 28 Gauge, Standard Wt Steel Base, US26D Satin Chrome Finish
The ETH8W4040 626 BB1279 model from Command Access Technologies is equipped with a power transfer hinge and features a standard weight steel base with a US26D satin chrome finish. It also includes a square corner measuring 4 inches by 4 inches, and is supported by 8 wire with 28 gauge.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
