Technical Specs
| Hinge Type |
Hinge, Full Mortise |
| Bearing Type |
Plain Bearing |
| Pin Type |
Non-Removable |
| Tip Style |
Standard |
| Weight |
Standard Weight |
| Power Transfer |
8-28GA |
| Product Type |
Electrified Hinges |
Product Specs
| Manufacturer |
Command Access Technologies |
| SKU |
ETH8W4540626CHBB79RC14 |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Base Material |
Steel |

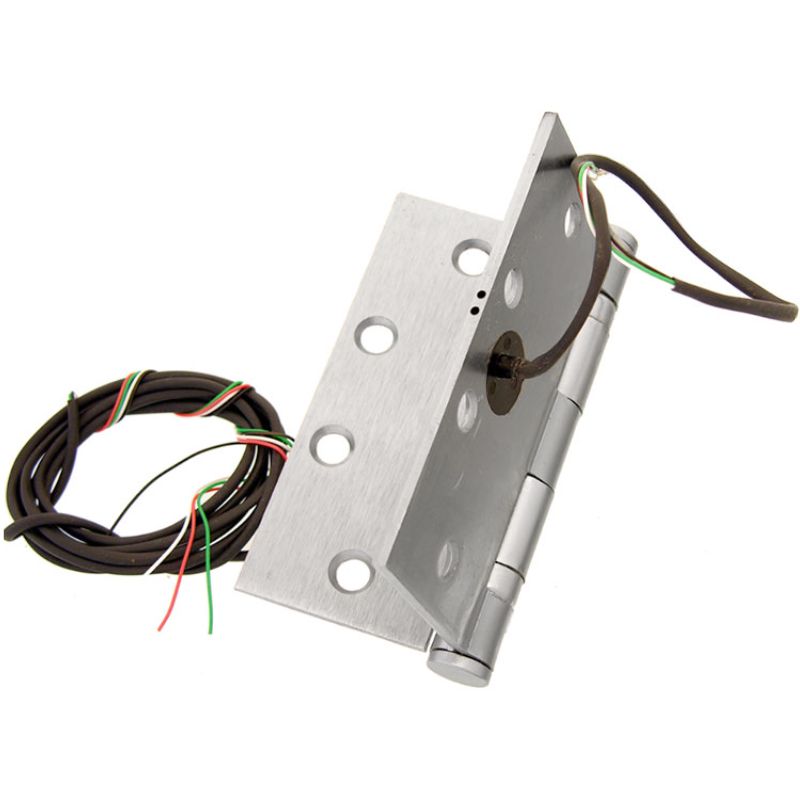

Command Access Technologies ETH8W4540 626 CH-BB79 RC14, Transfer Hinge, 8 Wire Power, 1/4 Radius Corner 4.5 In x4 In, 8 - 28 Ga, Standard Wt Steel Base, Satin Chrome Finish
The ETH8W4540 626 CH-BB79 RC14 Power Transfer Hinge is a top-of-the-line product from Command Access Technologies. It features 8 wires for optimal power transfer and a 1/4 radius corner design, providing both durability and functionality. The 4.5 inch by 4 inch hinge is constructed with 8-28 gauge standard weight steel for superior strength. Its satin chrome finish adds a sleek touch to any door.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
