Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 4-18GA and 4-28GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH8W5045 626 CH-BB68 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

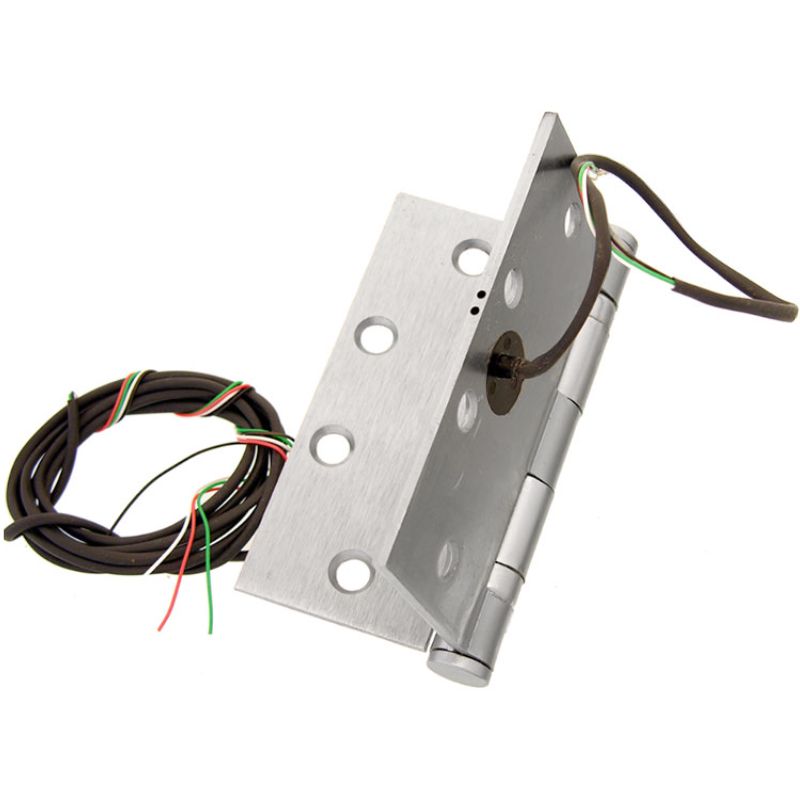

Command Access Technologies ETH8W5045 626 CH-BB68, Power Transfer Hinge, Square Corner 5 In x 4 1/2 In, [8] 28 Gauge Wire, Heavy Wt Steel Base, Satin Chrome Finish
The Command Access Technologies ETH8W5045 626 CH-BB68 is a power transfer hinge with a heavy weight steel base, square corners measuring 5 inches by 4.5 inches, and a satin chrome finish. It comes equipped with [8] 28 gauge wires for reliable and efficient power transfer.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
