Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Plain Bearing |
| Pin Type | Non-Removable |
| Tip Style | Standard |
| Weight | Standard Weight |
| Power Transfer | 2-20GA and 6-28GA |
| Product Type | Electrified Hinges |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | ETH8W4545 626 CH-BB99 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |

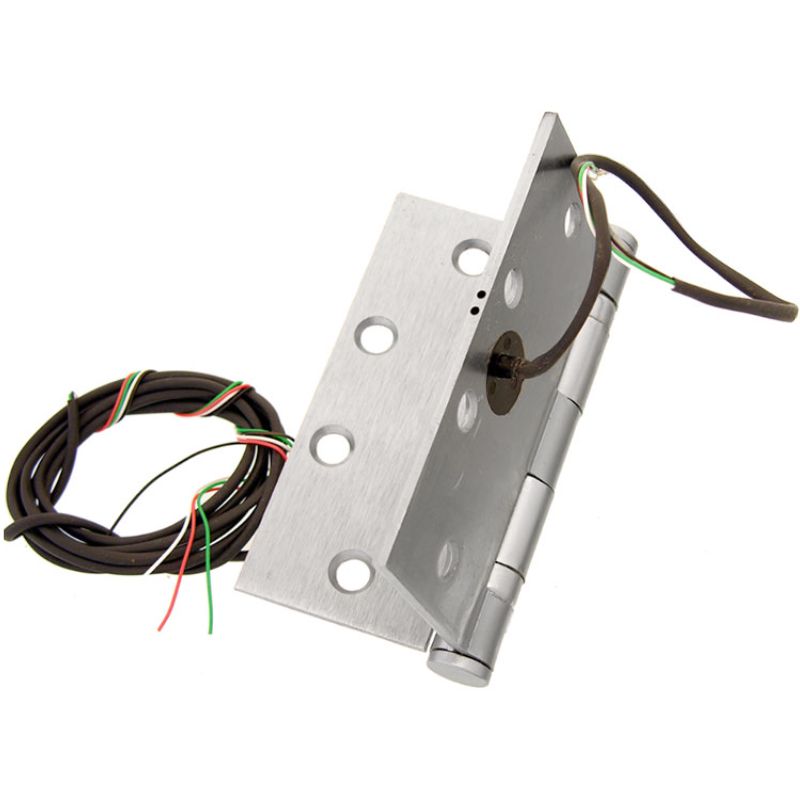

Command Access Technologies ETH8WH4545 626 CH-BB99, Power Transfer Hinge, Square Corner 4 1/2 In x 4 1/2 In, [2] 20 And 6 - 28 Ga Wire, Heavy Weight Brass Base, Satin Chrome Finish
The ETH8WH4545 626 CH-BB99 Power Transfer Hinge features a heavy weight brass base and a satin stainless steel finish. It also includes a square corner 4 1/2 In x 4 1/2 In design and can accommodate [2] 20 and 6 - 28 Ga wires for efficient power transfer. Expertly crafted by Command Access Technologies, this hinge is perfect for heavy duty applications.
The Energy Transfer Hinge (ETH) provides an optimal solution for transferring low-voltage power from the hinge jamb to the lockset without any visible wires. These hinges are frequently utilized with electric mortise and cylindrical locks, electric strikes (particularly on pairs of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights.
