All Command Access Technologies Products
Technical Specs
| Operating Voltage | 24 VDC |
| Wireless | No |
Product Specs
| Manufacturer | Command Access Technologies |
| SKU | MLRK1-JAC12 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Limited Warranty | 3 Years |
| Application | Jackson 1275/1285/1295, Kawneer 1686/1786 Series Exit Device |

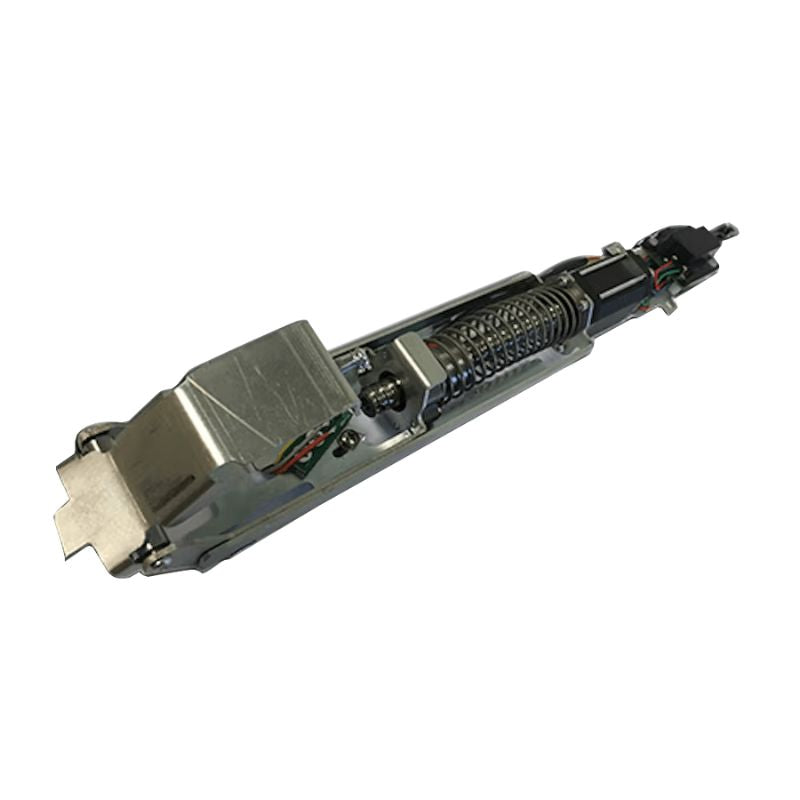

Command Access Technologies MLRK1-JAC12 15/16 Motorized Latch Retraction Retrofit Kit, Fail Secure, 24V, For Jackson 1275/1285/1295 & Kawneer 1686/1786 Series Exit Device
The MLRK1-JAC12 is a durable, easy-to-install motorized latch retraction kit designed for use with Jackson 1275/85/95, Kawneer 1686/1786, and AHT 8/9 series exit devices. This kit features a CAT-designed custom assembly that optimizes the pulling force for effective operation. Installation is straightforward, requiring only a single hole for the raceway. The kit incorporates our latest 1 TOUCH PTS "Push to Set" technology, simplifying the post-installation adjustment process and ensuring a seamless setup.
- Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- 1 Touch “PTS”: Quick & easy post-installation adjustment
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
- Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
- Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
- 8” cable with Robust Quick Molex Connector for MM5 module to connect to incoming power.
-
3-year “No Hassle” Warranty
- Work with Jackson 1275/1285/1295, Kawneer 1686/1786 Series Exit Device
