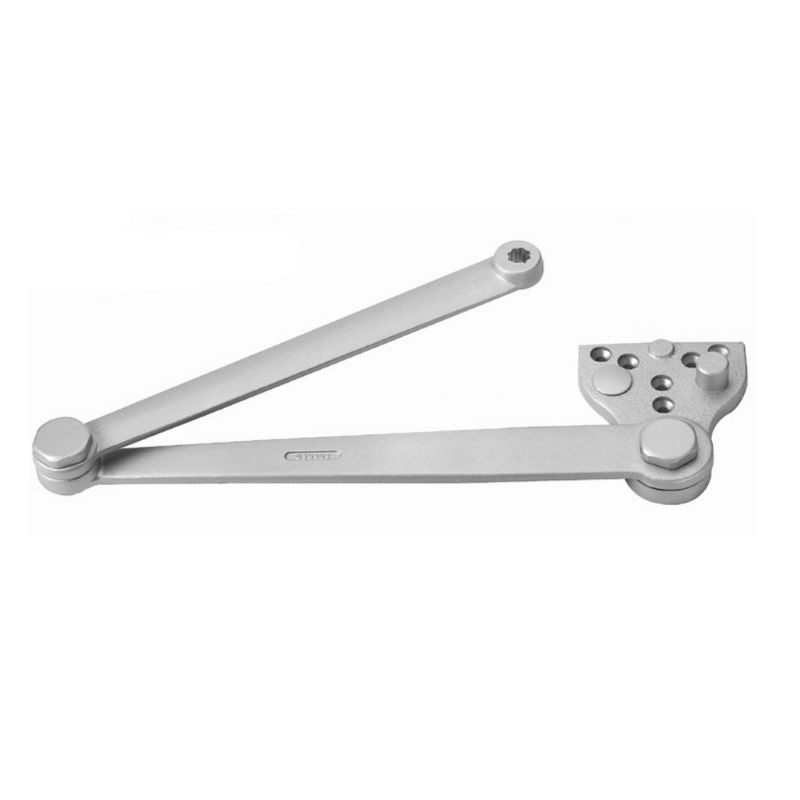

Corbin Russwin 689F03 Door Closer Part, Heavy-Duty Parallel Arm with Backstop

 Technical Specs

Product Specs

Corbin Russwin 689F03 Door Closer Part, Heavy-Duty Parallel Arm with Backstop, For DC3000, DC6000, DC8000 Series

The Corbin Russwin 689F03 Door Closer Part is designed for use with the DC3000, DC6000, and DC8000 series of door closers, providing a heavy-duty parallel arm with backstop that ensures reliable and secure operation.

• Recommended for high-use, high-abuse environments

• Tamper-resistant, solid forged steel riveted arm (mounted on push side)

• Field-reversible steel lug restricts degree of opening to protect door, wall and hardware

• Requires both backcheck valves on closer

• Shipped standard as left hand. Handing can be reversed in the field

• Not available in plated finishes

• Optional on DC3210, DC6210, and DC8210 closers

• Non-hold open arm, specify closer x A4. Door stop range 85° to 110°

• Hold open arm, specify closer x A5*. Door stop/hold open range 85° to 110°
