All CORBIN RUSSWIN Products
- Description
- Document Center
Description

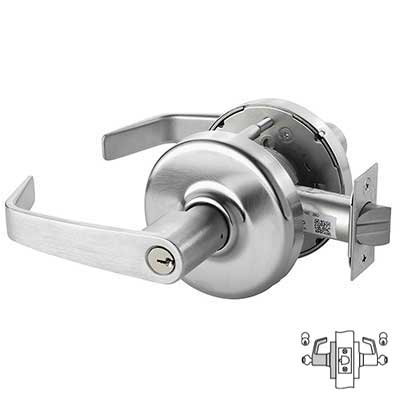

Corbin Russwin CL3352 Cylindrical Lever Lockset Classroom Intruder Function, Grade 1, L4 Keyway, KR, 2-3/4 Backset, 4-7/8 Strike, Non-Handed
Classroom Security
The CL3352 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not. And because a key is needed to secure the door from either side, students cannot lock a teacher out of the classroom.
The CL3352 Classroom Intruder function lockset allows locking of the outside lever from either side with the key. In a panic situation, the Key Turn Indicator serves as a quick reference for locking the door. And egress is always possible with the “anti-panic” feature, which keeps the outside lever locked if the inside lever is activated.
Note: The CL3300 Cylindrical Lever Lock series has been discontinued mid 2023 and replaced by the advanced Corbin Russwin CLX3300 Series, which offers superior security features and performance.
Features Furnished With 4 7/8" Strike Plate, Option "KR" L4 Keyway, Includes [2] Change Keys- Keyed Random
| Handing | Non-handed (Except FZD trim) |
| Door Thickness | 1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2"(51mm) - 2-1/4" (57mm) |
| Lock Chassis | Steel, zinc dichromate for corrosion resistance. |
| Backset | 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm) |
| Latchbolt | Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors |
| Auxiliary Latchbolt | Deadlocking latch bolt prevents manipulation when the door is closed. |
| Front | Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional: rounded corners |
| Strike | Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths, and ANSI wrought strike box available |
| Cylinder | Brass, 6-pin L4 keyway, Std KR See Options |
| Keying Features Available | Master keying All Options Below Call For Pricing Construction master keying Visual key control Concealed key control Interchangeable core (IC) Security Security IC (not available with CL3329) Pyramid (not available with CL3329) Pyramid IC (not available with CL3329) Access 3® Access 3® IC (not available with CL3329) |
| Keys | Two nickel silver standards Except for Less Coire. |
| Warranty | Seven-year limited. |
