Description

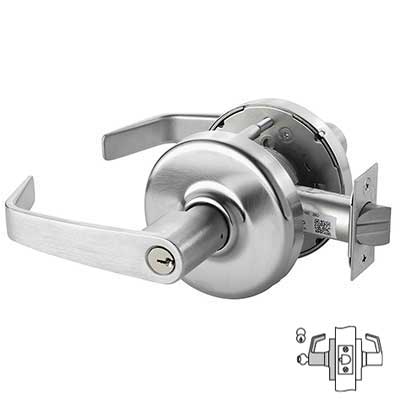

Corbin Russwin CL3355-NZD-626 Cylindrical Lockset Classroom Function, Grade 1, Newport Lever, 2-3/4 Backset, 4-7/8 Strike, Satin Chrome Finish, Non-Handed
Function: Classroom
- Deadlocking latch bolt by lever either side, except when key outside locks outside lever. (Lever handle is freewheeling in the locked position)
- Outside lever unlocked by key outside
- Inside lever always free
Note: The CL3300 Cylindrical Lever Lock series has been discontinued mid 2023 and replaced by the advanced Corbin Russwin CLX3300 Series, which offers superior security features and performance.
Features Furnished With 4 7/8" Strike Plate,"KR" L4 Keyway, Includes [2] Change Keys- Keyed Random
| Handing | Non-handed (Except FZD trim) |
| Door Thickness | 1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2"(51mm) - 2-1/4" (57mm) |
| Lock Chassis | Steel, zinc dichromate for corrosion resistance. |
| Backset | 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm) |
| Latchbolt | Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors |
| Auxiliary Latchbolt | Deadlocking latch bolt prevents manipulation when the door is closed. |
| Front | Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional: rounded corners |
| Strike | Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths, and ANSI wrought strike box available |
| Cylinder | Brass, 6-pin L4 keyway, Std KR See Options |
| Keying Features Available | Master keying All Options Below Call For Pricing Construction master keying Visual key control Concealed key control Interchangeable core (IC) Security Security IC (not available with CL3329) Pyramid (not available with CL3329) Pyramid IC (not available with CL3329) Access 3® Access 3® IC (not available with CL3329) |
| Keys | Two nickel silver standards Except for Less Coire. |
| Warranty | Seven-year limited. |
| Manufacturer | Corbin Risswom Cylindrical Locks |
