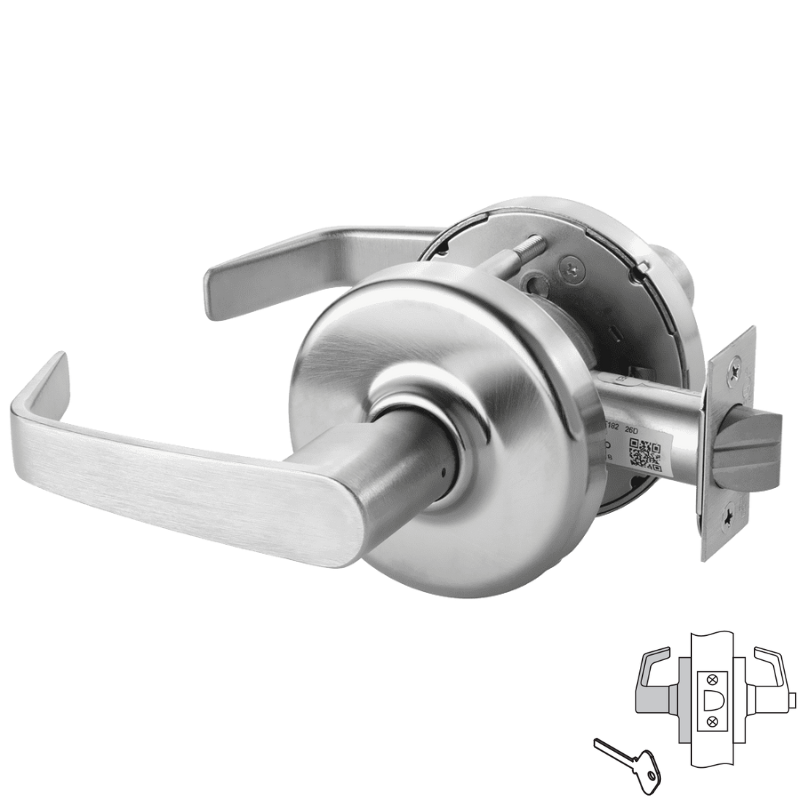

Corbin Russwin CLX3320-NZD Cylindrical Lock, Privacy Function

The Corbin Russwin CLX3320-NZD is a Grade 1, Privacy Function Cylindrical Lever Lockset, witha an NZD Newport lever, is Non-Keyed, Non-Handed, has a 2-3/4 Backset, a 4-7/8 Strike, and is available in 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, and 626 Satin Chrome finish.

Function Privacy Bedroom or Bathroom:

• Outside lever locked by push button (lever handle is freewheeling in locked position)
• Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door
• Inside lever always free

Features:

• Exceeds 3,200 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
• Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements)

• Latch retraction with 200 lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors or doors with latch bind.

• No access with minimum 200 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements)
• Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
• UL Cycle above and beyond test completed at 20 Million Cycles. Verification ID: V875753
• Innovative push/turn button design to withstand excessive abuse against door stops or walls.
• Lockbody design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.

• High Security and security key systems available (Access 3, Pyramid)

• Patented and/or patent pending adjustable push/turn button for easy door thickness adjustment.

• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 92% energy savings

• Lever Release freewheeling levers are standard for vandal resistance; rigid levers are optional.

• Available with 27 mechanical and 2 electromechanical functions

• 14 finishes and MicroShield options


Benefits:

• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high-volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility's key systems
