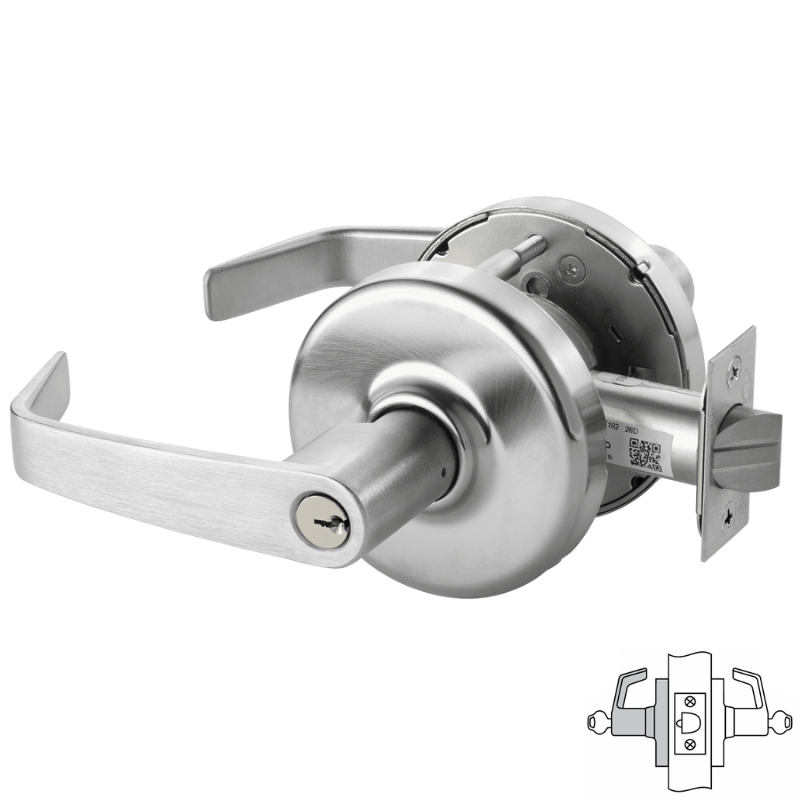

Corbin Russwin CLX3352-NZD Cylindrical Lock, Classroom Intruder Function, Multiple Core Options

  • SKU: CLX3352NZD626
  • ✓
    Available (2 Weeks)
    2 Weeks Lead Time
Your Price
$812.00/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3352-NZD Classroom Intruder Function Cylindrical Lever Lockset, Newport Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3352-NZD Cylindrical Lock is a grade 1 lever lockset designed for classrooms and featuring an intruder function. It comes with multiple core options, a Newport Lever, and has a 2-3/4 backset and 4-7/8 strike. This non-handed lock is a reliable and secure choice for any educational setting.

Function: Classroom Intruder

  • Deadlocking latchbolt by inside lever or outside lever except when key inside or outside locks outside lever (lever handle is freewheeling in the locked position)
  • Outside lever is locked and unlocked by turning the key in the inside or outside lever
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • L6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core



Manufacturer Corbin Russwin
SKU CLX3352 NZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 52 Classroom Intruder
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder, L4 Keyway, 6 Pin, 2 Cut Keys
CL6 - SFIC, Sold Less Core M08 - LFIC, Sold Less Core
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
