Description

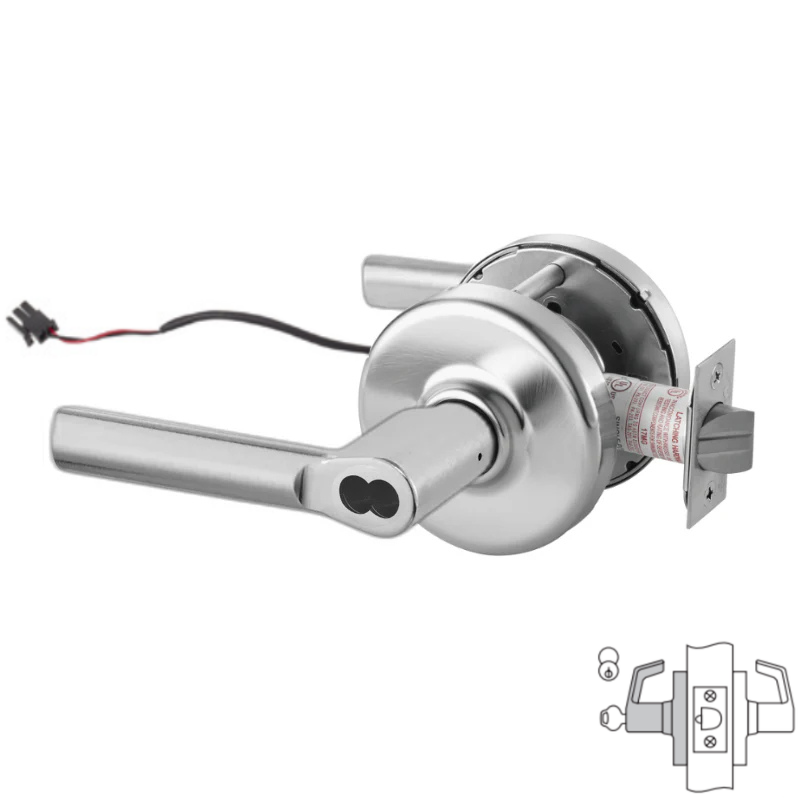

Corbin Russwin CLX33905-106D-626-CL6 Fail Secure Function Electrified Cylindrical Lever Lockset, Salvador 106D Lever, 2-3/4 Backset, 4-7/8 Strike, 6-Pin LFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish
The Corbin Russwin CLX33905-106D is a Grade 1 electrified cylindrical lockset featuring the sleek Salvador (106) lever design and a Fail Secure function. Designed for high-traffic commercial environments, this lock remains secure from the outside during power outages while ensuring constant free egress from the interior. It operates with an ultra-efficient 10mA current draw and includes the ElectroLynx® 8-pin connector for simplified "plug-and-play" integration. This model comes prepped for a 6-pin Large Format Interchangeable Core (LFIC), providing a flexible keying solution for facilities that require frequent lock changes.
Function: Fail Secure - The Fail Secure function ensures the outside lever remains locked when power is removed, maintaining building security during a power outage or system failure. When power is applied, the outside lever unlocks for entry, while the inside lever always allows for free egress at all times.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CLX33905-106D-626-CL6 |
| Grade | Grade 1 |
| ANSI | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Electrical Options | Request to Exit switch for monitoring activation of the inside lever |
| Burglar Rated | No |
| Voltage | Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive |
| ElectroLynx® | Provided with 8-pin molex connector |
Technical Specs
| Function |
905-Electromechanical (Fail Secure) |
| Current draw |
10mA @ 12VDC or 24VDC Continuous |
| Lever/Knob Design | 106 - Salvador Lever |
| Rose/Escutcheon Design |
D Rose |
| Cylinder Type | 6-Pin LFIC Prep, Less core |
| Num Pins | 6 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F21 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
