Description

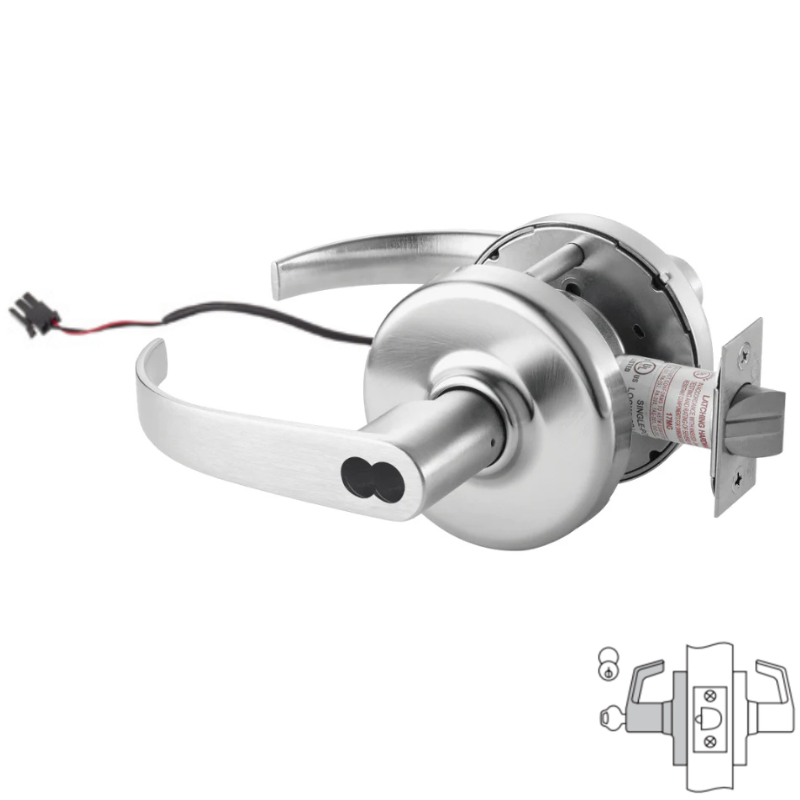

Corbin Russwin CLX33905-PZD-626-CL6 Fail Secure Function Electrified Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, 6-Pin LFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish
The Corbin Russwin CLX33905-PZD-626-CL6 is a heavy-duty, Grade 1 electrified cylindrical lever lockset designed for high-traffic commercial and institutional security. Featuring a fail-secure function, this Princeton lever lock remains locked during power failures to ensure building integrity while always allowing free egress from the inside. Built for seamless integration with electronic access control systems, it comes standard with ElectroLynx® quick-connectors for a simple "plug-and-play" installation. This satin chrome (626/US26D) lockset supports 12VDC or 24VDC operation and is prepped for a 6-pin Large Format Interchangeable Core (LFIC), making it a reliable, vandal-resistant choice for offices, hospitals, and schools requiring elite-level durability and modern aesthetics.
Function: Fail Secure - The Fail Secure function ensures the outside lever remains locked when power is removed, maintaining building security during a power outage or system failure. When power is applied, the outside lever unlocks for entry, while the inside lever always allows for free egress at all times.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CLX33905-PZD-626-CL6 |
| Grade | Grade 1 |
| ANSI | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Electrical Options | Request to Exit switch for monitoring activation of the inside lever |
| Burglar Rated | No |
| Voltage | Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive |
| ElectroLynx® | Provided with 8-pin molex connector |
Technical Specs
| Function |
905-Electromechanical (Fail Secure) |
| Current draw |
10mA @ 12VDC or 24VDC Continuous |
| Lever/Knob Design | PZ - Princeton Lever |
| Rose/Escutcheon Design |
D Rose |
| Cylinder Type | 6-Pin LFIC Prep, Less core |
| Num Pins | 6 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F21 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
