Technical Specs
| Physical Appearance |
Wide Stile Pushpad |
| Device Type |
Rim |
| Mechanical Function |
Exit Only, Accepts Trim |
| Device Length |
36" and 48" |
| Hand |
Non-Handed |
| Dogging Options |
Hex Key Dogging |
| Includes Trim |
No |
| Includes Cylinder(s) |
No |
| Minimum Stile Size |
4-1/2 In. |
| Door Material |
Metal or Wood |
| Door Width |
30 In. - 36 In. and 36 In. - 48 In. |
| Door Thickness |
1 3/4 In. |
| Fire Rated |
No |
| Product Type |
Rim Exit Devices |
Product Specs
| Manufacturer |
Corbin Russwin |
| SKU |
ED5200S |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Base Material |
Stainless Steel |
| Limited Warranty |
5 Years |

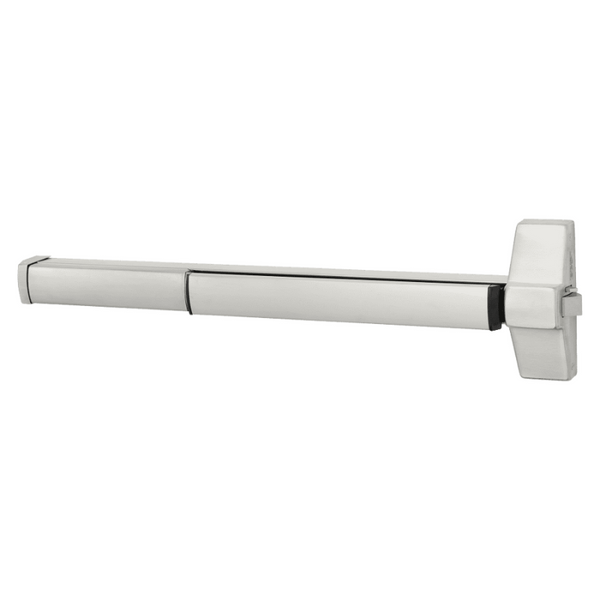

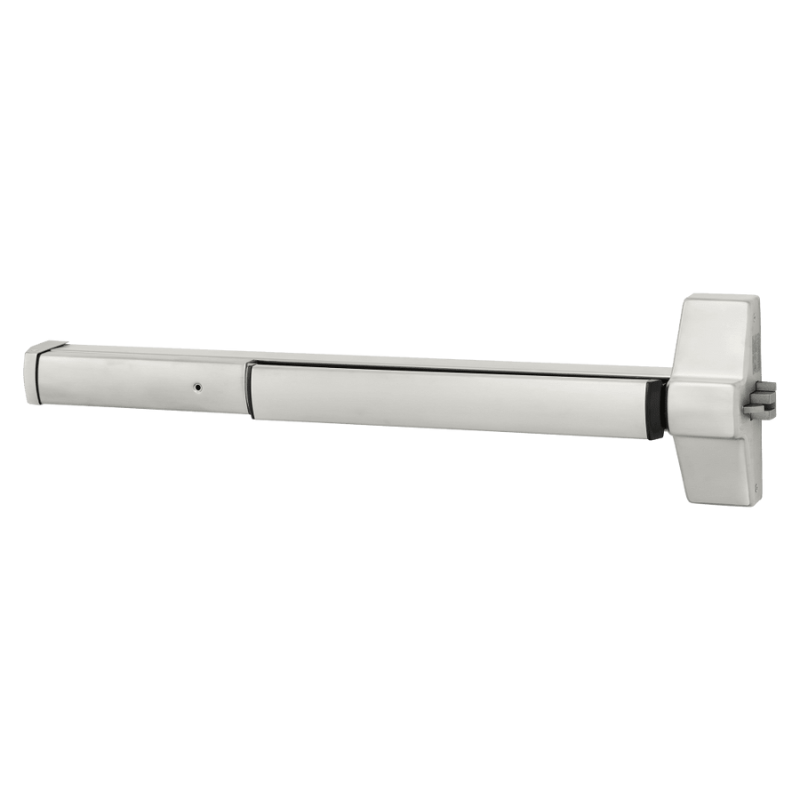

Corbin Russwin ED5200S SecureBolt Rim Exit Device, Exit Only, Hex Key Dogging, Non Handed
The ED5200S SecureBolt Rim Exit Device by Corbin Russwin is specifically designed for exit-only purposes and includes a hex key dogging mechanism for enhanced security. It is non-handed, allowing for versatile use in various applications. This device features a deadbolt style latchbolt that effectively resists external force, minimizing door and frame separation and preventing forced entry.
- SecureBolt® Features
- Heavy Duty – ANSI/BHMA Grade-1 Certified
- Exit Only
- Trim Sold Separately. See Frequently Bought Together above
- Rim Exit Device for doors 30" - 36" and 36" - 48" in width
- Hex Dogging
It is among the most durable exit devices on the market, with additional security options.
The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in the rim, mortise, surface vertical rod, and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5-year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
