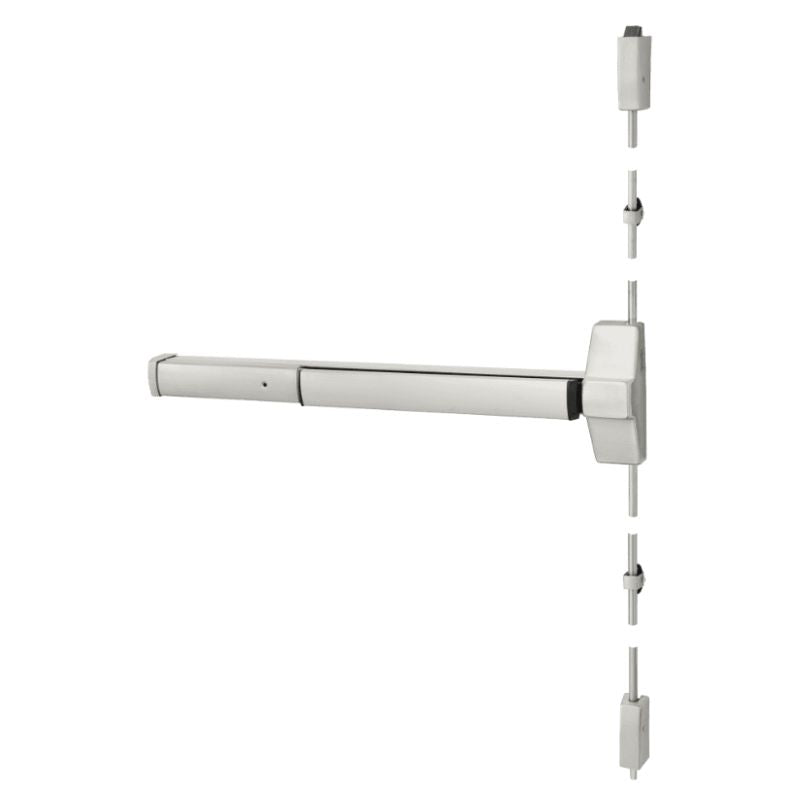

Corbin Russwin ED5400 Grade 1 Panic-Listed Surface Vertical Rod Panic Bar, 36", Select Door Width, Select Handing, Select Finish
Corbin Russwin ED5400 panic bar is a Grade 1 surface vertical rod, suitable for doors with a width of 36". It is listed for panic usage and comes in multiple options for door width, handing, and finish.
- Exit Only (Corbin Russwin outside trim sold separately)
- Designed for standard-width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- UL symbol on the active case cover indicates listing.
Multi-Function Device: Trims below decide the function of the device;
- N955 - Classroom (accepts a Corbin Russwin Rim Cylinder): Entrance by lever. Key locks or unlocks lever.
- N957 - Night Latch (accepts a Corbin Russwin Rim Cylinder): Entrance by trim when latchbolt is retracted by key.
- N959 - Storeroom (accepts a Corbin Russwin Rim Cylinder): Entrance by lever only when released by key. Key removable only when locked.
- N910 - Passage (No Cylinder): Entrance by trim when latchbolt is retracted by lever. Lever always active, no cylinder.
Applications
- Schools
- Hospitals
- Office Buildings
- Theatres
ED5000 Series Pushpad Exit Devices
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in rim, mortise, surface vertical rod and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
