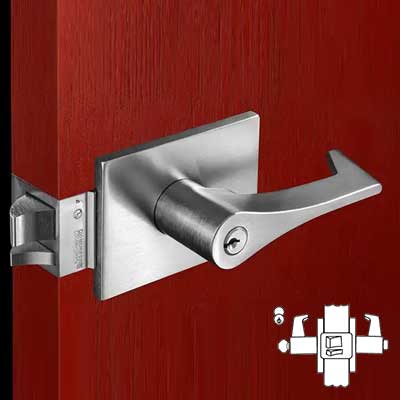

Corbin Russwin UT5251 Entrance Function-Pre-Assembled Unit Lockset, Conventional Cylinder L4, Keyed Random, [2] Change Keys, 1 3/4 Thick Door, 2 3/4 Backset Standard With a 4 7/8" ASA Strike. Handed
The UT5200 lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized.
Handing Specify hand. All functions are handed.
Door Thickness 1-3/4" (44mm) only.
Backset 2-3/4" (70mm) only.
Lock Chassis One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromate for corrosion resistance.
Auxiliary Latch Deadlocks latch bolt, preventing manipulation when door is closed.
Strike Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes and lip lengths available;
Cylinder Brass, 6-pin, L4 keyway, Keyed Random
Keys Two nickel silver standard.
Federal Meets FF-H-106C.
UL-cUL All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm) All locksets also listed for B label
