Technical Specs
| Device Type | Trim |
| Trim Type | Classroom Lever |
| Fire Rated | No |
| Product Type | Exit Device Trim |
Product Specs
| Manufacturer | Detex |
| SKU | 08BN 689 |
| Base Material | VARIES |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |

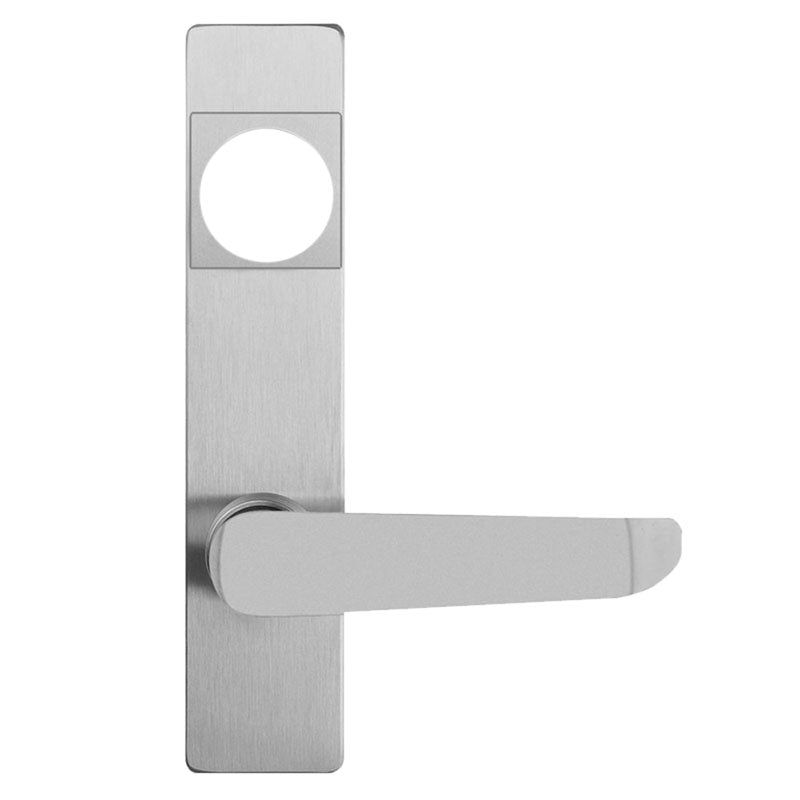

The Detex 08BN 689 is a Classroom Function Exit Device Lever Trim with a Cylinder Hole, has a BN Lever Style, is Non-Handed, and comes in a 689 Aluminum Finish. Detex 08BN 689 is sold Less Cylinder and is for use with V40 Series devices.
Classroom Function - Entrance by lever. Key locks or unlocks lever.
Lever Trim Designs
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.
Features
- S Lever Standard
- BN Trim available in 689 or 693 finishes
- BN Trims are Zinc Castings
- Mortise cylinder required for 08BN and 09BN
- Mortise Cylinder with Standard Yale Cam Required
- 161 Prep Cover Plate Standard
