Detex ECL-230X-TDB 3 Point Deadbolt Exit Control Lock (Top Bolt, Dead Bolt & Bottom Bolt)

  • SKU: ECL230XTDB

Detex ECL-230X-TDB 3 Point Deadbolt Exit Control Lock (Top Bolt, Dead Bolt & Bottom Bolt)

  • SKU: ECL230XTDB
Sale price$1,547.00/ea
In Stock
In Stock

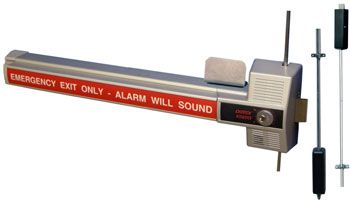

DETEX ECL-230X-TDB  3-Point Deadbolt Exit Control Lock (Top Bolt, Dead Bolt & Bottom Bolt)
The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.


Features

  • Attack resistant design for maximum holding force
  • Proven durability and reliability at a reasonable price
  • Reduces employee and customer theft
  • 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
  • Saw resistant dead bolts
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Surface/flush reversible strike
  • Easy to install
  • Time tested construction resists attack from the inside
  • Easy to see if the lights go out
  • Straight forward operation that everyone understands
  • Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
  • Saw resistant dead bolt
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
  • Locking and unlocking the dead bolt always arms and disarms the alarm
  • Resetting the alarm can only be accomplished with a control key
  • Gray Finish (Std.)
  • English Push Plate Sign (Std.)

Specifications:

Door Types: Wood, Hollow Metal or Aluminum
Door Thickness: Fits standard 1-3/4" - 2-1/4"
Dimensions: One size fits 36”-48” doors for code compliant acceptance
Trim Function: Exit Control Hardware
Handing: Non-Handed
Power: 9-volt battery (included)
Push Bar: 24” ECL-230X
Sound Pressure: 100 decibel alarm
Compliances:  Meets ADA requirements
Warrenty: 10 Year Limited Manufacturers Warranty


Certifications:

Fire Rated:

UL Listed

CA State Fire Marshal:

4140-0127:102

ANSI/BHMA:

Requirements for all Building Codes

Panic Handing Chart
