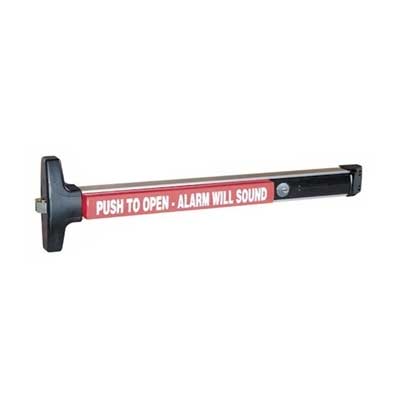

Detex V40 EE CD 628 99 36, Wide Stile Rim Exit Device, Delayed Egress Device 15 Seconds, Exit Only, 36" Bar, Cylinder Dogging, Schlage M65 Keyed Random, [2] Keys, 99 Surface Strike, Satin Aluminum Clear Anodized

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum • Door Thickness - Fits standard 1-3/4” - 2-1/4” • Single Door Stile - Fits 3-1/2” minimum stile doors with 99 surface strike (Std.) • Pairs of Doors Stile - Fits 4” minimum stile doors with 99 surface strike • Door Stile - Fits 2” narrow stile doors - specify NS • Machine and Self-Drilling Screws (Std.)

Features

• Code-compliant, alarmed, durable attractive, and easy to install fire and panic hardware with relatching bolt provides 15 seconds delayed egress security for primary and secondary exits
• Ideal for loss prevention protection on emergency exit doors in a wide variety of buildings and businesses.
• Alarm is armed or disarmed by key. A mortise cylinder with standard Yale cam is required (sold separately)
• Stainless steel self-latching bolt
• Angled end cap to deflect the damage
• Tamper-resistant housing
• Delayed arming feature
• Manual rearming or auto-rearming
• Latch bolt monitoring standard
• Approximately 100dB alarm
• Powered by standard 24-volt AC power (transformer included) with 9-volt battery backup
• Low battery alert (field selectable)
• Remote bypass capability
• U.L. listed fire and panic exit hardware; ANSI/BHMA Grade 1; ADA; CA Title 19. Exceeds life safety requirements for all building codes
