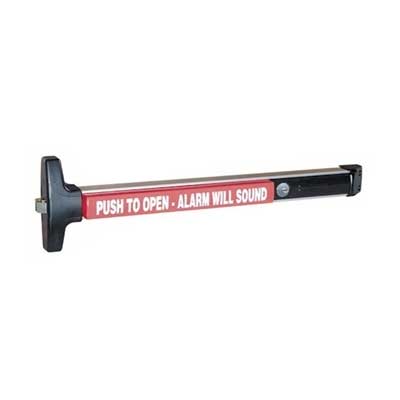

Detex V40 EE CD 628 99 48, Wide Stile Rim Exit Device, Delayed Egress Device 15 Seconds, Exit Only, 48" Bar, Cylinder Dogging, Schlage M65 Keyed Random, [2] Keys, 99 Surface Strike, Satin Aluminum Clear Anodized
• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum • Door Thickness - Fits standard 1-3/4” - 2-1/4” • Single Door Stile - Fits 3-1/2” minimum stile doors with 99 surface strike (Std.) • Pairs of Doors Stile - Fits 4” minimum stile doors with 99 surface strike • Door Stile - Fits 2” narrow stile doors - specify NS • Machine and Self-Drilling Screws (Std.)
Features
- Code-compliant, alarmed, durable attractive, and easy to install fire and panic hardware with relatching bolt provides 15 seconds delayed egress security for primary and secondary exits
- Ideal for loss prevention protection on emergency exit doors in a wide variety of buildings and businesses.
- Alarm is armed or disarmed by key. A mortise cylinder with standard Yale cam is required (sold separately)
- Stainless steel self-latching bolt
- Angled end cap to deflect the damage
- Tamper-resistant housing
- Delayed arming feature
- Manual rearming or auto-rearming
- Latch bolt monitoring standard
- Approximately 100dB alarm
- Powered by standard 24-volt AC power (transformer included) with 9-volt battery backup
- Low battery alert (field selectable)
- Remote bypass capability
- U.L. listed fire and panic exit hardware; ANSI/BHMA Grade 1; ADA; CA Title 19. Exceeds life safety requirements for all building codes
