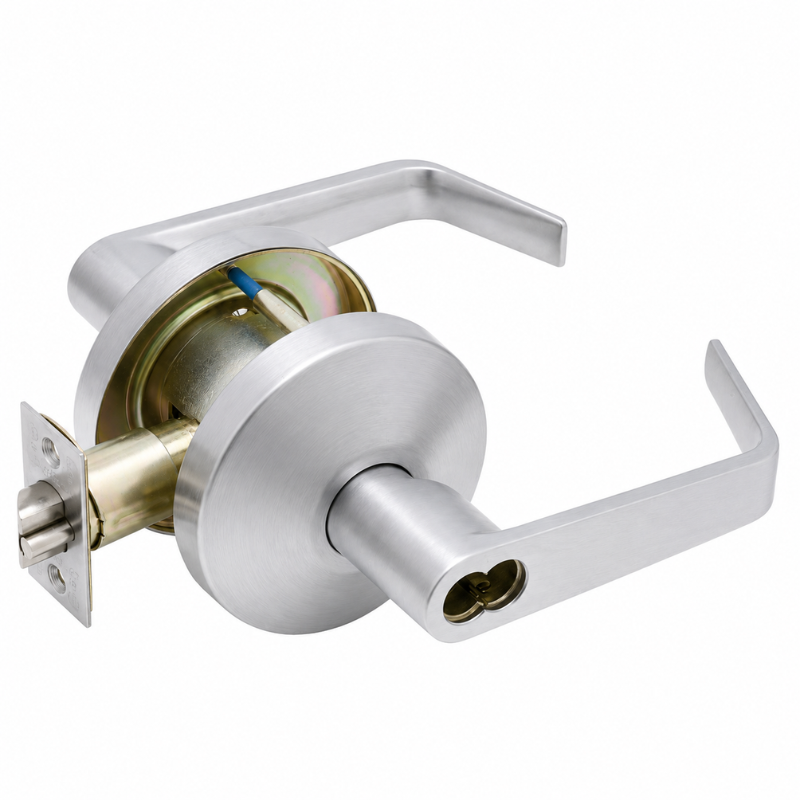

Falcon B581BD-D-626 Cylindrical Lock, Storeroom Function, SFIC Prep Less Core, Dane Lever, Standard Rose, Grade 2, Non-handed, Satin Chrome Finish
The Falcon B581BD-D-626 is a Grade 2 cylindrical lock built for the demands of commercial storeroom applications. Featuring the storeroom function, the outside lever stays locked at all times while the inside lever always allows free egress, making it a reliable choice for supply rooms, mechanical spaces, and other secured areas. It comes prepped for a small format interchangeable core (SFIC) but ships less core, giving facility managers flexibility to integrate their existing keying system. The Dane lever paired with a standard rose delivers a clean, modern look, and the durable Satin Chrome (626) finish resists wear in high-traffic settings. This non-handed lockset installs easily on doors of either hand.
Features
- Storeroom function keeps the outside lever locked while the inside lever provides free egress at all times.
- SFIC prep accepts a small format interchangeable core and ships less core for keying flexibility.
- Dane lever design with a standard rose offers a contemporary, comfortable grip.
- Grade 2 ANSI/BHMA certified construction for dependable commercial performance.
- Non-handed for simple installation on left- or right-hand doors.
- Satin Chrome (626) finish provides a durable, corrosion-resistant surface.
Functional Details
The storeroom function secures the outside lever at all times, requiring a key for entry, while the inside lever remains free for immediate exit. This makes it ideal for rooms that must stay locked but still allow safe egress.
- Latchbolt operated by key from outside or by inside lever.
- Outside lever is always fixed.
- Inside lever is always free for immediate egress.
| Manufacturer | Falcon |
|---|---|
| SKU | B581BD-D |
| Function | Storeroom |
| Lever Style | Dane Lever |
| Rose Style | Standard Rose |
| Grade | ANSI/BHMA Grade 2 |
| Handing | Non-handed |
| Cylinder Prep | SFIC, less core |
| Finish | Satin Chrome (626) |
| Unit of Measure | Each |
| ANSI Number | F86 |
| Limited Warranty | Yes |
| Backset | 2-3/4" standard (2-3/8" available) |
|---|---|
| Door Thickness | 1-3/8" to 1-3/4" |
| Latchbolt Throw | 1/2" |
| Faceplate | 1" x 2-1/4" |
| Strike | ANSI standard 1-1/8" x 2-3/4" |
| Bore Diameter | 2-1/8" |
| Latch Bore | 1" |
| Rose Diameter | 3-9/16" |
| Lever Return | Return to within 1/2" of door |
| Cylinder Type | 6- or 7-pin SFIC compatible |
