All FALCON Products

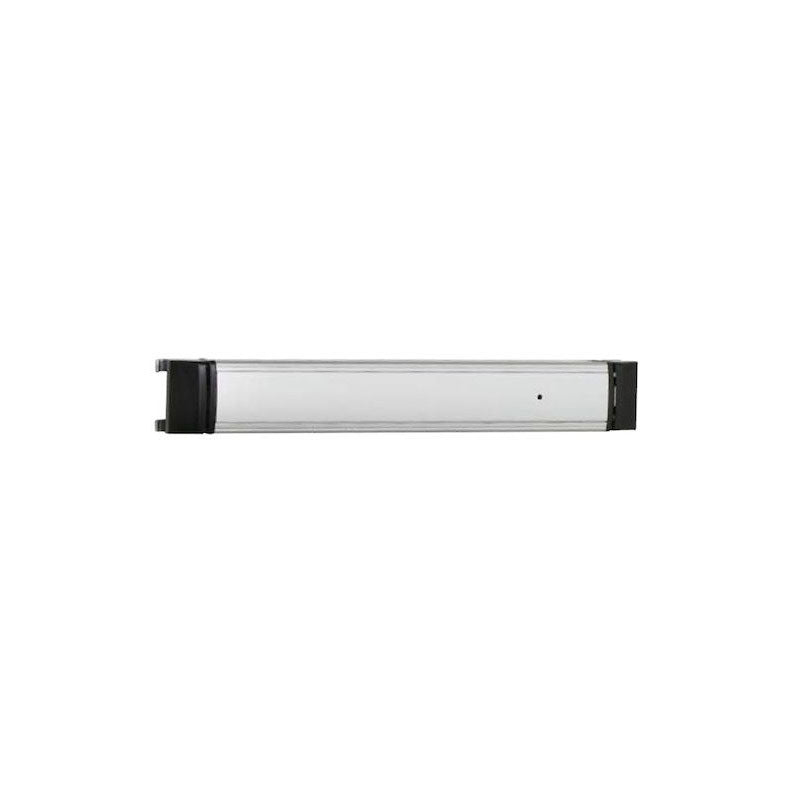

Falcon EL-2390EO-36" x 84" x 41"AFF-US28 Concealed Vertical Rod Mid-Panel Exit Devices, Exit Only, Electric Latch Retraction, 36" Device, 84" Dr Height, 41" AFF To Centerline, Satin Aluminum

  • SKU: EL2390EO368441AFFUS28LHR
Falcon EL-2390EO-36" x 84" x 41"AFF-US28 Concealed Vertical Rod Mid-Panel Exit Devices
Falcon EL-2390EO-36" x 84" x 41"AFF-US28 Concealed Vertical Rod Mid-Panel Exit Devices
All FALCON Products

Falcon EL-2390EO-36" x 84" x 41"AFF-US28 Concealed Vertical Rod Mid-Panel Exit Devices, Exit Only, Electric Latch Retraction, 36" Device, 84" Dr Height, 41" AFF To Centerline, Satin Aluminum

  • SKU: EL2390EO368441AFFUS28LHR
$1,923.00/ea
In Stock
In Stock
Handing: LHR Left Hand Reverse

The Falcon EL-2390EO-36" x 84" x 41"AFF-US28 is a Concealed Vertical Rod Mid-Panel Exit Device, that is Exit Only, has Electric Latch Retraction, is a 36" Device, is for use with 83" high doors, is 41" AFF To Centerline Of Device, is Handed, and comes in Satin Aluminum Clear Anodized Finish.

2390 Series Exit Devices
Provides safe and reliable egress ideal for aluminum doors.

  • Comes standard with hex dogging and concealed mounting screws to prevent tampering

  • Options include four functions and four finishes

  • Certified ANSI A156.3 Grade 1 standards

  • UL305 listed

Manufacturer Falcon
SKU EL2390EO3648441AFFUS28
Installation Commercial
Limited Warranty 10 Years
Finish 628/US28
Finish Description Satin Aluminum Clear Anodized



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Cable
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36"
Hand Handed
Dogging Options Hex Dogging
Top Strike 249
Strike Bottom 349
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 4  1/4"
Door Material Metal
Door Width 38" to 48"
Door Height 84"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible Yes
Product Type Concealed Vertical Cable Exit Devices

Product Cut Sheet
