- Description
- The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
- Document Center

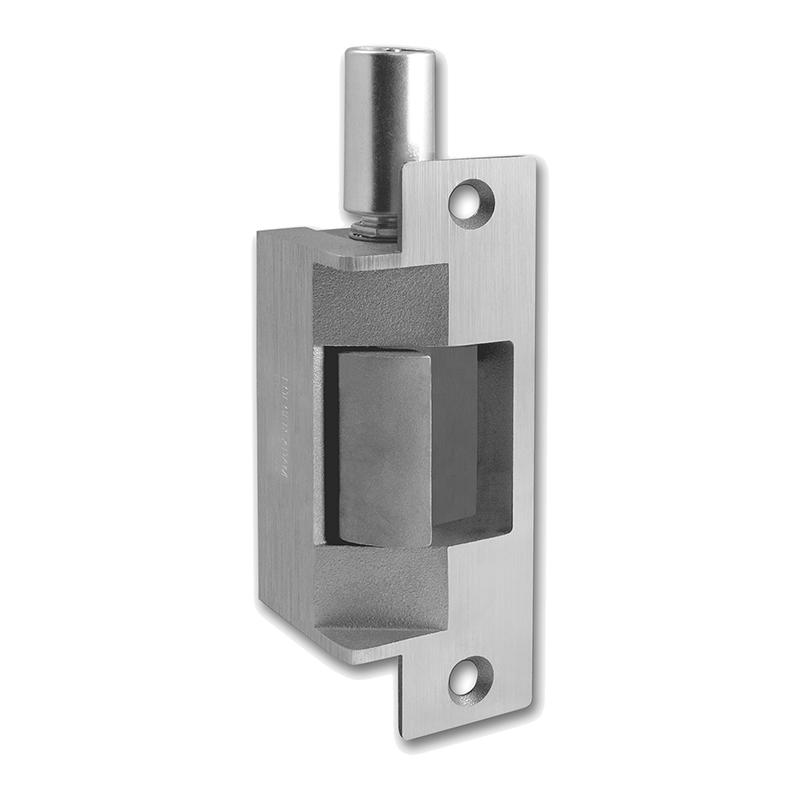

Folger Adam 712 F 24D 630 Fail-Safe 24VDC Electric Strike, 1/2" Keeper, Metal Frame 630/US32D Satin Stainless Steel
712 F 24D 630 Folger Adam Electric Strike The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. Fail-Safe, Complete 24VDC Electric Strike, 1/2" Keeper, Metal Frame Satin Stainless Steel The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. For use with 1/2" to 5/8" throw latch bolts in hollow metal frame applications. 1/2" PK keeper standard
Technical Specs | |
Function | Electrically Unlocked (Fail Secure) |
Operating Voltage | 24VDC |
Amp Draw | .15 AMPS |
Keeper Size | 1/2 In. |
Configuration | Centered |
For Use With | Cylindrical Locks, Mortise Exit, and Latch Locks |
Faceplate Size | 4-7/8 In. X 1-1/4 In. |
Fire Rated | Yes |
Holding Force | 1500 Lbs. |
Switch Type | None |
Frame Application | Metal |
Product Type | Electric Strike |
The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1/2" throw latch bolts, and the 712-75 is designed to accommodate 3/4" latch bolts.
- UL 10C fire-rated, 3-hour single door (fail secure only)
- UL 10C fire-rated, 3-hour double door fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 296 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
