- Description
- The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
- Document Center

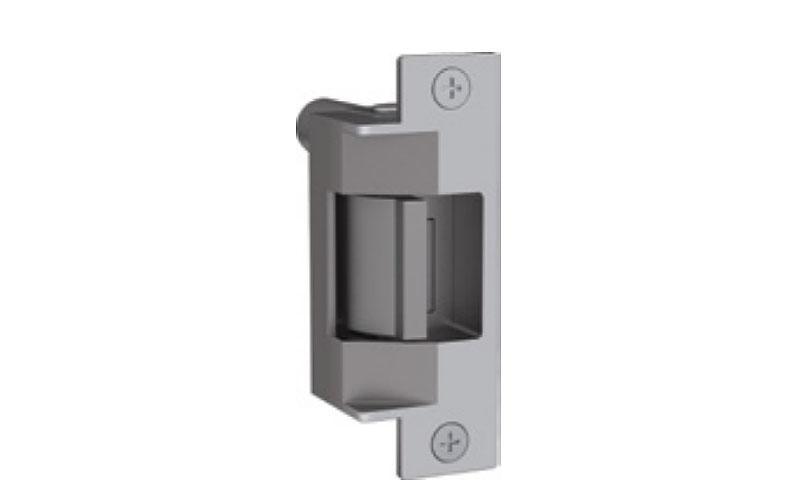

Folger Adam 732-75 12D 630 Fail Secure 12VDC Electric Strike, 3/4" Keeper, Wood Frame, 630/US32D Satin Stainless Steel
732-75 12D 630 Folger Adam Electric Strike The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. Fail Secure, Complete 12VDC Electric Strike, 3/4" Keeper, Wood Frame, Satin Stainless Steel The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. For use with 1/2", 5/8", or 3/4" throw latch bolts in wood frame applications. Features an offset solenoid.3/4" PK keeper standard
Technical Specs | |
Function | Electrically Unlocked (Fail Secure) |
Operating Voltage | 12VDC |
Amp Draw | .29 AMPS |
Keeper Size | 3/4 In. |
Configuration | Centered |
For Use With | Cylindrical Locks, Mortise Exit and Latch Locks |
Faceplate Size | 4-7/8 In. X 1-1/4 In. |
Fire Rated | Yes |
Holding Force | 1500 Lbs. |
Switch Type | None |
Frame Application | Wood |
Product Type | Electric Strike |
700 Series Electric Strikes
The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1/2" throw latch bolts, and the 712-75 is designed to accommodate 3/4" latch bolts.
- UL 10C fire-rated, 3-hour single door (fail secure only)
- UL 10C fire-rated, 3-hour double door fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 296 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
