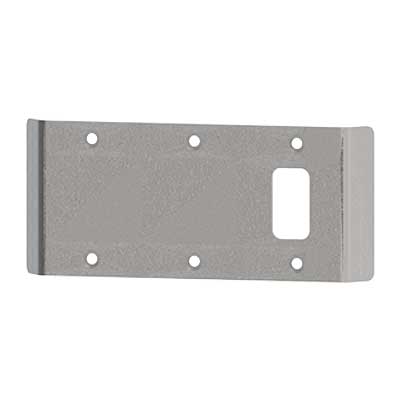

Hager 454 Double Lipped Strike

Hager 454 is double lipped for 1/8" inset hung doors Hager 454 is to be used with Hager's pivots and door release #600, #611, and #612. This allows doors to be opened in both directions without damage to the frame. - Standard latch bolt cutout is 1-1/4" x 11/16" (32 mm x 17 mm) - Standard strike plates are optimized for cylindrical locks/latches mounted on 1- 3/4" thick doors - ANSI A1882 -

- Mortise lock applications require special latch cutout location (consult specific manufactures for variations of cutout dimensions) - For use with Camtrol double acting pivot
