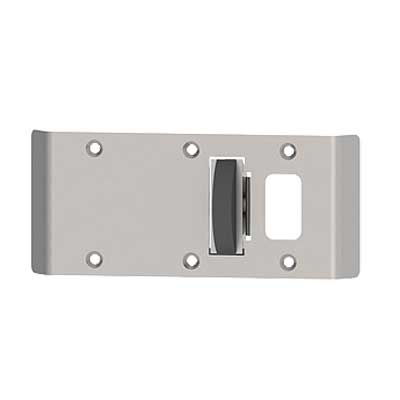

Hager 457 Combination Rescue Door Stop and Two Way Strike Plate

Hager 457 contains a door release and is double lipped for 1/8" inset hung doors in US26D - Satin Chromium Plated finish. To be used with Hager 510, 511, and 512 pivots. Handed (Specify when ordering). Door release allows doors to be opened in both directions without damage to the frame. The standard latch bolt cutout is 1-1/4" x 11/16" (32 mm x 17 mm). Standard strike plates are optimized for cylindrical locks/latches mounted on 1- 3/4" thick doors

- Mortise lock applications require a special latch cutout location (consult specific manufactures for variations of cutout dimensions.
