Description

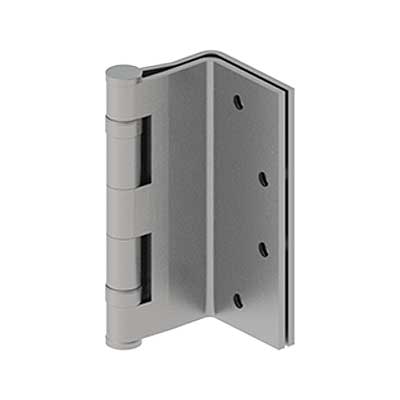

Hager BB1361-50-US32D Ball Bearing Swing Clear Hinge - 5", 630/US32D Satin Stainless Steel Finish
Hager BB1361-50 is a 5" standard weight, five knuckles full mortise swing clear hinge. The Hager BB1361-50 is ball bearing and a Non-Removable Pin.
Hager BB1361-50 Features
- ANSI A5122
- For beveled edge doors
- When opened 90 °, the door projects 3/32" (2 mm) past stop of a jamb
- Non-rising removable pin with button tip and plug
- Two ball bearings
- Reversible
- For use in hospitals or other institutional type buildings
- Stainless Steel with Stainless Steel pin
- US32D - Satin Stainless Steel
Hager BB1361-50 Specifications
| Materials: | Steel with Steel pin |
| Finish: | US32D - Satin Stainless Steel |
| Hinge Size: | 5" |
| Metal Gauge: | 0.145 |
| Hole Count: | 8 |
| Machine Screw Size: | 1/2" x 12-24 FH |
| Wood Screw Size: |
1-1/4 x 12 FH |
| Manufacturer: | Hager |
