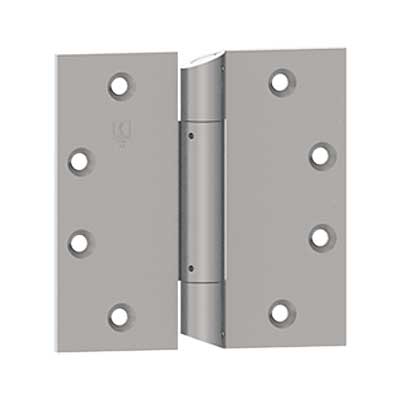

Hager IHTAB750-5045 Institutional Prison Hinge - 5" x 4.5"
Hager IHTAB750-5045 is a Full Mortise Heavy Weight Three knuckle Institutional Prison Hinge with a Concealed Anti-Friction Bearing. The Hager IHTAB750-5045 has a Welded Hospital Tip.
Features
- Three knuckle
- Concealed, maintenance-free bearing
- Hospital Tip
- Welded, anti-ligature, hospital tips
- Welded knuckles
- For use on heavyweight doors ranging from 200-300 lbs
Specifications
| Materials: | Steel with Stainless Steel pin |
| Gauge of Metal: | 0.190 |
| Hole Count: | 8 |
| Screw Size (Machine): | 1/2 x 12-24 FPHM |
| Size: | 5" x 4.5" (127mm x 114 mm) |
| Manufacturer: | Hager |
Certifications
| ANSI: | ANSI A8111 |
