Hager Roton 780-053 Half Surface Standard Duty Continuous Geared Hinge - 83"

  • SKU: 78005383CLRULST

Hager Roton 780-053 Half Surface Standard Duty Continuous Geared Hinge - 83"

  • SKU: 78005383CLRULST
Sale price$466.00/ea
In Stock
In Stock
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Fire Rating: UL-ST Fire Rated with Stud (UL Stamp)

Hager Roton 780-053 Half Surface Standard Duty Continuous Geared Hinge - 83"

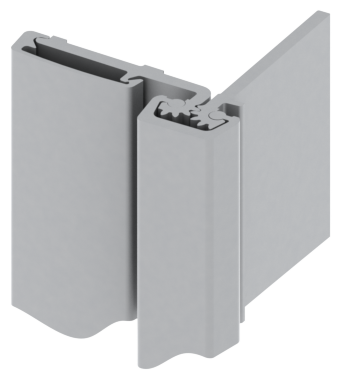

Standard Duty Half Surface Hinge


Features

  • Frame leaf alignment rib for proper hinge location
  • Security molding
  • 1/8" (3 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 5/32" (4 mm) minimum recommended hinge side
Plus standard lockside clearance
Fasteners: Dril-Kwik ® screws and sex bolts
Length: 83" (2108 mm)
Door Reinforcement: None required
Frame Reinforcement: None required
Fire Rating: Up to 3 hr. metal and 90 min. wood composite(with screws)
When ordering, must specify if UL stamp is required
Warranty: All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager

Continuous Hinge Handing Chart
