Description

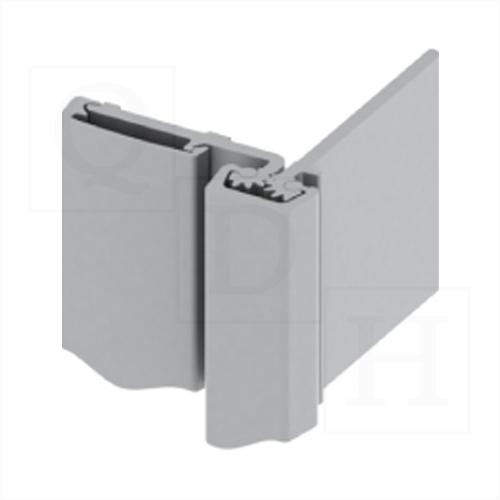

Hager Roton 780-054HD Half Surface Heavy Duty Continuous Geared Hinge - 83"
Heavy Duty Half Surface Hinge
Features
- Frame leaf alignment rib for proper hinge location
- Security molding
- 1/8" (3 mm) inset
Specifications
| Materials: | Aluminum 6063-T6 |
| Clearance: | 5/32" (4 mm) minimum recommended hinge side Plus standard lockside clearance |
| Fasteners: | Drill-Kwik ® screws and sex bolts |
| Length: | 83" (2108 mm) |
| Door Reinforcement: | None required |
| Frame Reinforcement: | None required |
| Fire Rating: | Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required |
| Warranty: | All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty |
| Manufacturer: | Hager |
