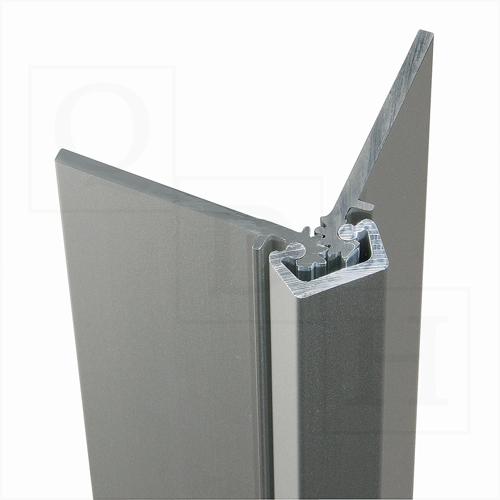

Hager Roton 780-112 Concealed Leaf Standard Duty Tamper Resistant Continuous Geared Hinge - 95"
Standard Duty Concealed Leaf Hinge
Features
This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
Tamper Resistant Hinge with Security Torx Fasteners
Frame and door leaf alignment ribs for proper hinge and door location
Specifications
Materials:
Aluminum 6063-T6
Clearance:
5/16" (8 mm) hinge side Plus standard lockside clearance
Fasteners:
Dril-Kwik ® screws and sex bolts
Length Options:
95" (2413 mm)
Door Reinforcement:
None required to 200 lbs. Heavier weight use 16-gauge channel
Frame Reinforcement:
None required to 200 lbs. Heavier weight use 16-gauge channel
Fire Rating:
Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required
Warranty:
All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
