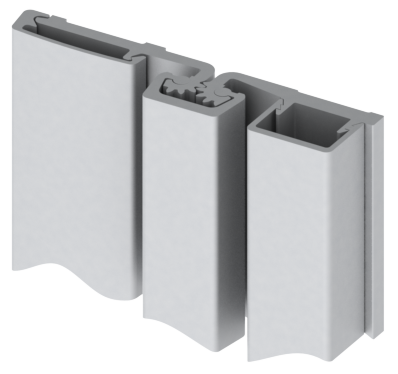

Name: Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 83"
Brand: HAGER
SKU: 780157HD83CLRULFF
Price: 425.00 CAD
Availability: InStock

Custom Shade Shape *

Super Ring Right Triangle Colors *

Super Ring Triangle Colors *

Super Ring Square Colors *

Super Ring Rectangle Colors *

Black Rectangle Size *

Green Rectangle Size *

Beige Rectangle Size *

Brown Rectangle Size *

Beige Square Size *

Black Square Size *

Brown Square Size *

Green Square Size *

Black Right Triangle Size *

Green Right Triangle Size *

Beige Right Triangle Size *

Gray Right Triangle Size *

Brown Right Triangle Size *

Black Triangle Size *

Gray Triangle Size *

Green Triangle Size *

Brown Triangle Size *

Beige Triangle Size *

Materials:	Aluminum 6063-T6
Clearance:	1/32" (1 mm) minimum recommended for the hinge side Plus standard lockside clearance
Fasteners:	Standard: #12 - 24 x 11/16" self drilling pan head machine screw 1/4" - 20 thru bolts for 1-3/8" - 1-3/4" doors
Length:	83" (2108 mm)
Fire Rating:	Up to 3 hr. metal and 90 min. wood composite (with studs) When ordering, must specify if UL stamp is required
Door Reinforcement:	None required to 200 lbs
Frame Reinforcement:	None required to 200 lbs. Heavier weight use 16-gauge channel
Warranty:	All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer:	Hager

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 83"

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 83"

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 83"Heavy Duty Full Surface Hinge
