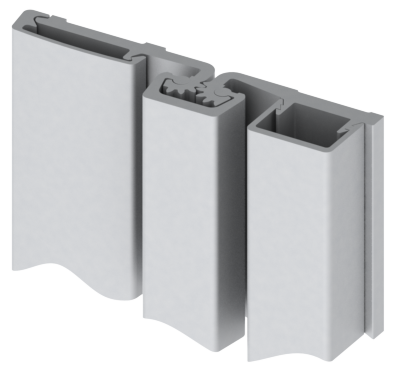

Hager 780-157HD-95
780-157HD-95
780-157HD-95 Hinge
Hager 780-157HD-95
780-157HD-95
780-157HD-95 Hinge
All HAGER Products

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 95"

  • SKU: 780157HD95CLRULFF
$504.00/ea
In Stock
In Stock
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 95"

Heavy Duty Full Surface Hinge

Features

  • For surface applications where frame face dimension is limited
  • Security moldings
  • 1/16" (1.5 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 1/32" (1 mm) minimum recommended for hinge side
Plus standard lockside clearance
Fasteners: Standard: #12 - 24 x 11/16" self drilling pan head machine screw
1/4" - 20 thru bolts for 1-3/8" - 1-3/4" doors
Length: 95" (2413 mm)
Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)
When ordering, must specify if UL stamp is require
Door Reinforcement: None required to 200 lbs
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Warranty: All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager
Product Cut Sheet

Continuous Hinge Handing Chart
