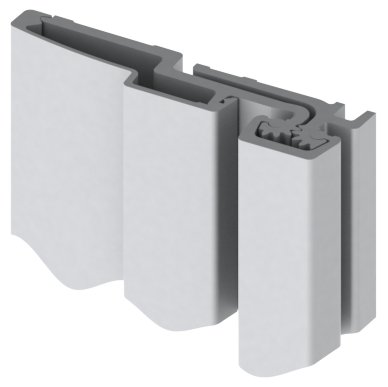

Hager Roton 780-210HD Full Surface Heavy Duty Continuous Geared Hinges - 79"
Heavy Duty Full Surface Hinge
Features
Can be used with any door and frame material
Security molding
1/32" (1 mm) inset
Specifications
Materials:
Aluminum 6063-T6
Clearance:
1/32" ( 1 mm) minimum recommended for hinge side Plus standard lockside clearance 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
Fasteners:
Drill-Kwik ® screws and sex bolts
Length:
79" (2007 mm)
Door Reinforcement:
None required to 200 lbs. Heavier weight use 16-gauge channel
Frame Reinforcement:
None required to 200 lbs. Heavier weight use 16-gauge channel
Fire Rating:
Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required
Warranty:
All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
